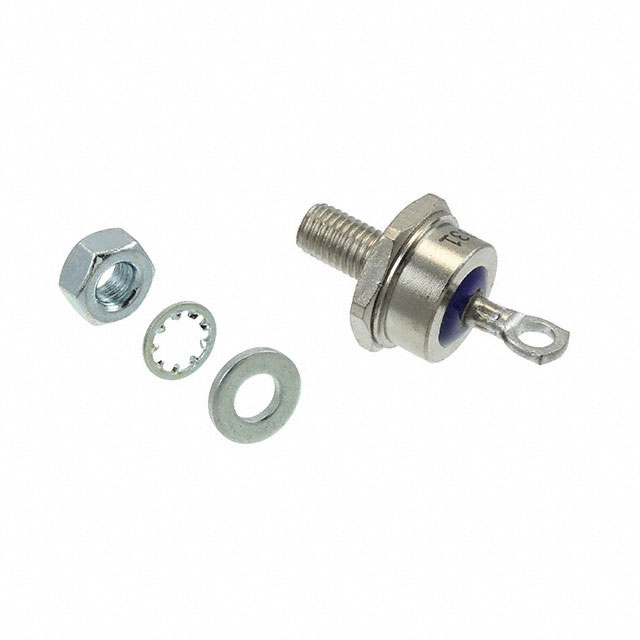

FR70GR02

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Single

JESD-30 Code :

O-MUPM-D1

Diode Type :

Standard, Reverse Polarity

Number of Phases :

1

Number of Terminations :

1

Max Surge Current :

870A

RoHS Status :

RoHS Compliant

Max Repetitive Reverse Voltage (Vrrm) :

400V

Packaging :

Bulk

Operating Temperature - Junction :

-40°C~125°C

Factory Lead Time :

10 Weeks

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Diode Element Material :

SILICON

REACH SVHC :

No SVHC

Voltage - Forward (Vf) (Max) @ If :

1.4V @ 70A

HTS Code :

8541.10.00.80

Forward Current :

70A

Max Forward Surge Current (Ifsm) :

870A

Mount :

Chassis, Stud

Terminal Position :

UPPER

ECCN Code :

EAR99

Element Configuration :

Single

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Recovery Time :

200 ns

Package / Case :

DO-203AB, DO-5, Stud

Terminal Form :

Solder Lug

Published :

2010

Average Rectified Current :

70A

Case Connection :

ANODE

Pbfree Code :

yes

Reverse Voltage :

400V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Peak Reverse Current :

25μA

Max Reverse Voltage (DC) :

400V

Current - Reverse Leakage @ Vr :

25μA @ 100V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Forward Voltage :

1.5V

Number of Pins :

2

Mounting Type :

Chassis, Stud Mount

Reverse Recovery Time :

200 ns

Lifecycle Status :

PRODUCTION (Last Updated: 6 months ago)

Number of Elements :

1
