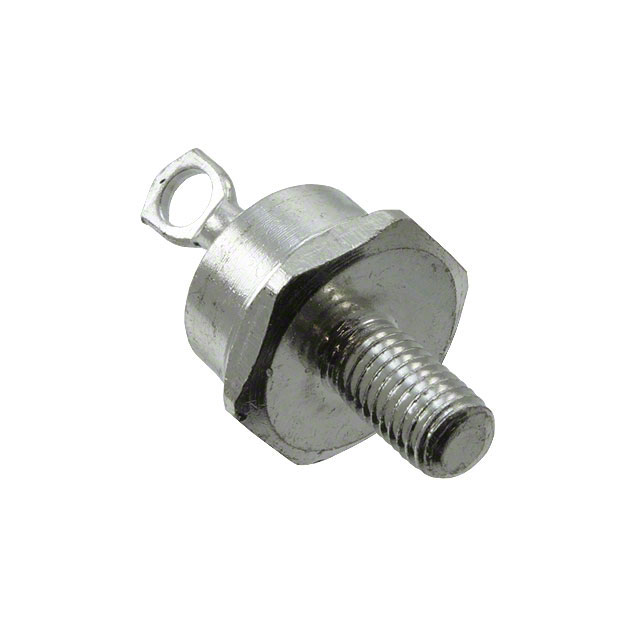

FR40GR02

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Single

REACH SVHC :

No SVHC

Published :

2010

Peak Reverse Current :

25μA

Max Forward Surge Current (Ifsm) :

500A

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Terminal Form :

Solder Lug

Number of Pins :

2

Lifecycle Status :

PRODUCTION (Last Updated: 6 months ago)

Number of Phases :

1

HTS Code :

8541.10.00.80

Mount :

Chassis, Stud

Packaging :

Bulk

Case Connection :

ANODE

Diode Type :

Standard, Reverse Polarity

Max Reverse Voltage (DC) :

400V

Current - Reverse Leakage @ Vr :

25μA @ 100V

JESD-30 Code :

O-MUPM-D1

Pbfree Code :

yes

Max Repetitive Reverse Voltage (Vrrm) :

400V

Operating Temperature - Junction :

-40°C~125°C

Reverse Recovery Time :

200 ns

Element Configuration :

Single

Factory Lead Time :

10 Weeks

Number of Elements :

1

Recovery Time :

200 ns

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

1

Forward Voltage :

1.4V

Terminal Position :

UPPER

Max Surge Current :

500A

Diode Element Material :

SILICON

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mounting Type :

Chassis, Stud Mount

Package / Case :

DO-203AB, DO-5, Stud

Voltage - Forward (Vf) (Max) @ If :

1V @ 40A

RoHS Status :

RoHS Compliant

Forward Current :

40A

Reverse Voltage :

400V

Average Rectified Current :

40A

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

ECCN Code :

EAR99
