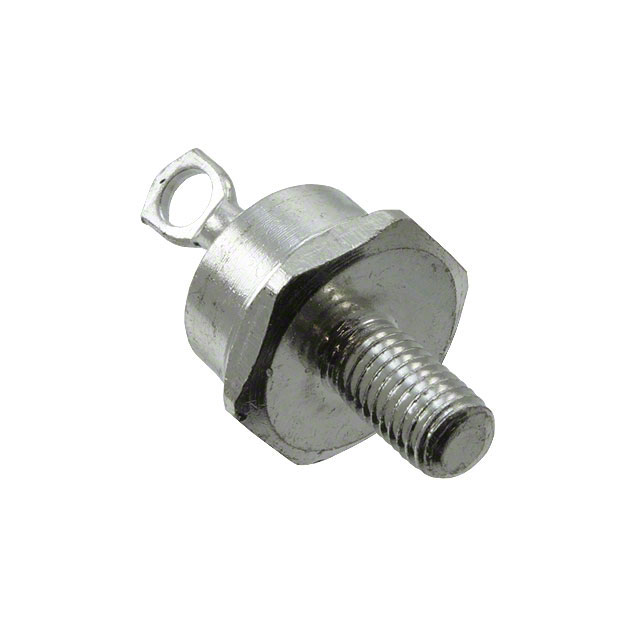

FR30G02

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Single

Lifecycle Status :

PRODUCTION (Last Updated: 6 months ago)

Diode Type :

Standard

Max Reverse Voltage (DC) :

400V

Max Repetitive Reverse Voltage (Vrrm) :

400V

Packaging :

Bulk

Terminal Form :

Solder Lug

Terminal Position :

UPPER

Operating Temperature - Junction :

-40°C~125°C

ECCN Code :

EAR99

Pbfree Code :

yes

Reverse Voltage :

400V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Average Rectified Current :

30A

Voltage - Forward (Vf) (Max) @ If :

1V @ 30A

Recovery Time :

200 ns

Number of Pins :

2

Forward Voltage :

1.4V

Max Forward Surge Current (Ifsm) :

300A

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Package / Case :

DO-203AB, DO-5, Stud

Current - Reverse Leakage @ Vr :

25μA @ 50V

REACH SVHC :

No SVHC

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Peak Reverse Current :

25μA

JESD-30 Code :

O-MUPM-D1

Forward Current :

30A

Number of Phases :

1

Published :

2010

Number of Elements :

1

Mounting Type :

Chassis, Stud Mount

Number of Terminations :

1

Case Connection :

CATHODE

Diode Element Material :

SILICON

Mount :

Chassis, Stud

HTS Code :

8541.10.00.80

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Element Configuration :

Single

Factory Lead Time :

10 Weeks

Reverse Recovery Time :

200 ns

Max Surge Current :

300A
