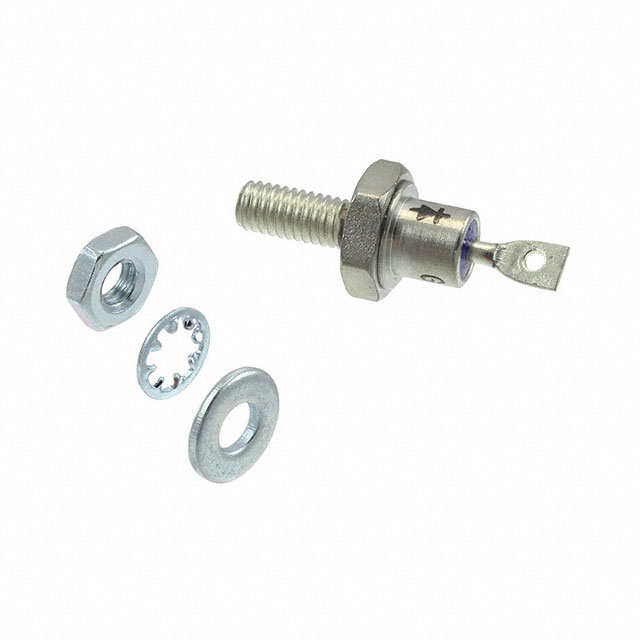

FR12JR02

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Single

ECCN Code :

EAR99

Forward Current :

12A

Max Repetitive Reverse Voltage (Vrrm) :

600V

Operating Temperature - Junction :

-65°C~150°C

Pbfree Code :

yes

Configuration :

Single

Factory Lead Time :

10 Weeks

Diode Element Material :

SILICON

Current - Reverse Leakage @ Vr :

25μA @ 100V

Mount :

Chassis, Stud

Reverse Recovery Time :

250 ns

Max Surge Current :

180A

HTS Code :

8541.10.00.80

Number of Terminations :

1

Terminal Position :

UPPER

Average Rectified Current :

12A

Package / Case :

DO-203AA, DO-4, Stud

RoHS Status :

RoHS Compliant

JESD-30 Code :

O-MUPM-D1

Max Reverse Voltage (DC) :

600V

Terminal Form :

Solder Lug

Operating Temperature (Max) :

150°C

Natural Thermal Resistance :

2.5 °C/W

Reverse Voltage :

600V

Packaging :

Bulk

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Diode Type :

Standard, Reverse Polarity

Peak Reverse Current :

25μA

Number of Elements :

1

Case Connection :

ANODE

Lifecycle Status :

Production (Last Updated: 5 months ago)

Recovery Time :

250 ns

Mounting Type :

Chassis, Stud Mount

Voltage - Forward (Vf) (Max) @ If :

800mV @ 12A

Number of Phases :

1
