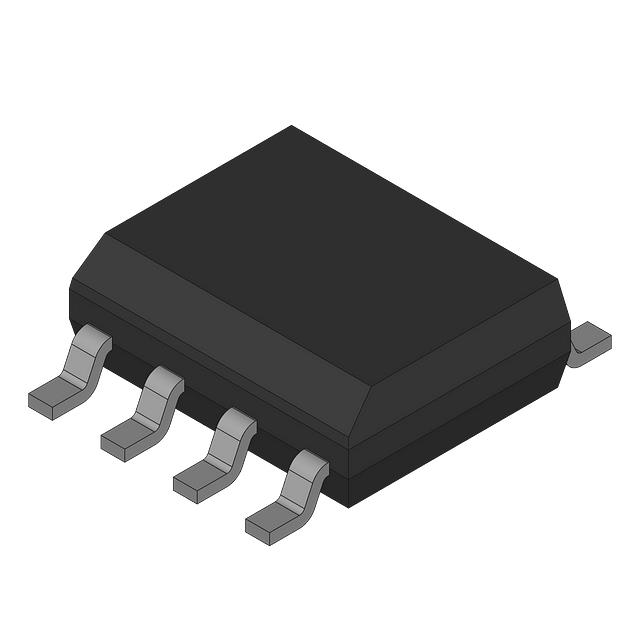

FPF2303MX

Manufacturer :

onsemi

Product Category :

Power Distribution Switches, Load Drivers

Rds On (Typ) :

75m Ω

Resistance :

140mOhm

Base Part Number :

FPF2303

Mounting Type :

Surface Mount

Lifecycle Status :

LIFETIME (Last Updated: 1 week ago)

Min Current Limit :

1.1A

Series :

IntelliMAX™

Number of Channels :

2

Pbfree Code :

yes

Number of Terminations :

8

Package / Case :

8-SOIC (0.154, 3.90mm Width)

Output Configuration :

High Side

Max Output Current :

1.1A

Fault Protection :

Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO

Width :

3.9mm

Current Rating :

1.3A

Terminal Position :

Dual

Number of Pins :

8

Turn-Off Delay Time :

6 μs

Output Type :

P-Channel

Terminal Finish :

Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

Min Input Voltage :

1.8V

Interface :

On/Off

Supply Voltage :

3.3V

Factory Lead Time :

6 Weeks

Input Type :

Non-Inverting

Number of Outputs :

2

Mount :

Surface Mount

Switch Type :

GENERAL PURPOSE

Turn On Delay Time :

113.5 μs

Terminal Form :

Gull wing

Number of Inputs :

1

Operating Supply Voltage :

5.5V

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Adjustable Threshold :

No

Weight :

230.4mg

ECCN Code :

EAR99

Ratio - Input:Output :

1:2

RoHS Status :

ROHS3 Compliant

Max Input Voltage :

5.5V

JESD-609 Code :

e4

Feature :

Slew Rate Controlled, Status Flag

Analog IC - Other Type :

POWER SUPPLY SUPPORT CIRCUIT

Voltage - Supply (Vcc/Vdd) :

Not Required

Operating Temperature :

-40°C~85°C TA

Packaging :

Tape and Reel (TR)

Length :

4.9mm

Number of Functions :

1

Radiation Hardening :

No

Voltage - Load :

1.8V~5.5V

Published :

2014

Output Current :

1.5A
