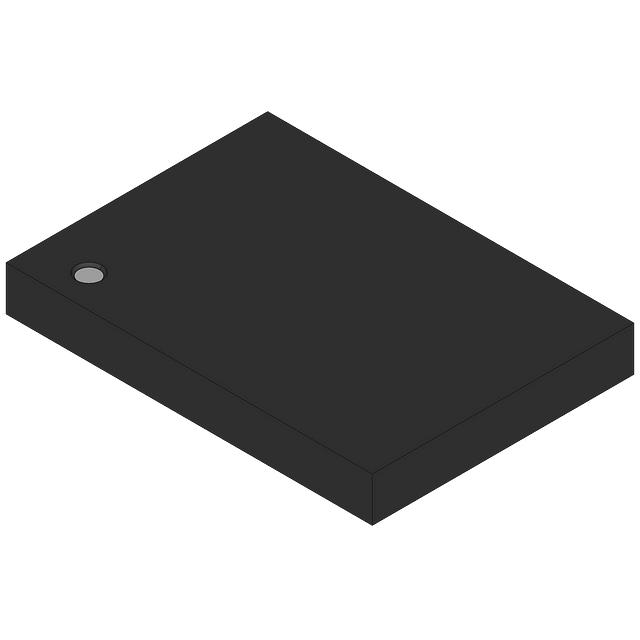

FPF2165

Manufacturer :

Fairchild Semiconductor

Product Category :

Power Distribution Switches, Load Drivers

Current :

1.5A

Mount :

Surface Mount

Number of Terminations :

6

Packaging :

Tape and Reel (TR)

Turn-Off Delay Time :

45 μs

Supply Voltage :

3.3V

Number of Pins :

6

Output Type :

P-Channel

Voltage - Load :

1.8V~5.5V

Published :

1996

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Adjustable Threshold :

yes

Lead Free :

Lead Free

Pbfree Code :

yes

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Max Power Dissipation :

1.2W

Factory Lead Time :

8 Weeks

Interface :

On/Off

Output Current :

150mA

Radiation Hardening :

No

Voltage :

5.5V

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-40°C~85°C TA

Length :

2mm

Width :

2mm

Input Type :

Non-Inverting

Number of Channels :

1

Rds On (Typ) :

120m Ω

Switch Type :

GENERAL PURPOSE

Number of Functions :

1

Resistance :

180mOhm

Feature :

Status Flag

Voltage - Supply (Vcc/Vdd) :

Not Required

Base Part Number :

FPF2165

Nominal Input Voltage :

5.5V

Terminal Finish :

Nickel/Gold/Palladium/Silver (Ni/Au/Pd/Ag)

Power Rating :

1.2W

Height :

750μm

Max Output Current :

1.5A

Fault Protection :

Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO

Ratio - Input:Output :

1:1

Package / Case :

6-WDFN Exposed Pad

ECCN Code :

EAR99

Terminal Position :

Dual

Weight :

30mg

Max Input Voltage :

5.5V

Turn On Delay Time :

25 μs

Number of Outputs :

1

Min Input Voltage :

1.8V

Output Configuration :

High Side

Analog IC - Other Type :

POWER SUPPLY SUPPORT CIRCUIT

Power Dissipation :

1.2W

Min Current Limit :

150mA

Mounting Type :

Surface Mount
