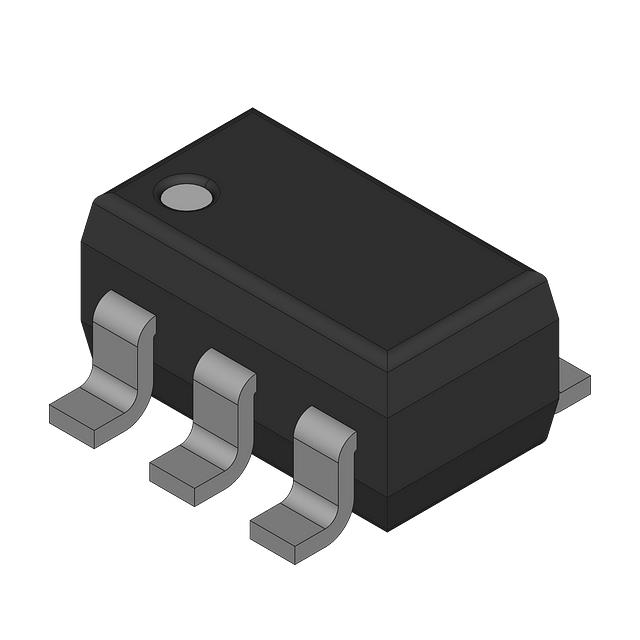

FPF2108

Manufacturer :

Fairchild Semiconductor

Product Category :

Power Distribution Switches, Load Drivers

Power Rating :

667mW

Terminal Form :

Gull wing

Series :

IntelliMAX™

Supply Voltage :

3.3V

ECCN Code :

EAR99

Output Configuration :

High Side

JESD-609 Code :

e4

Number of Pins :

5

Voltage :

5.5V

Max Input Voltage :

5.5V

Radiation Hardening :

No

Lead Free :

Lead Free

Nominal Input Voltage :

5.5V

Fault Protection :

Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO

Output Current :

400mA

Resistance :

125mOhm

Published :

1996

Driver Number of Bits :

1

Power Dissipation :

667mW

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Output Peak Current Limit-Nom :

0.6A

REACH SVHC :

No SVHC

Min Current Limit :

400mA

Voltage - Load :

1.8V~5.5V

Output Voltage :

6V

Current :

800mA

Package / Case :

SC-74A, SOT-753

Min Input Voltage :

1.8V

Ratio - Input:Output :

1:1

Factory Lead Time :

6 Weeks

Rds On (Typ) :

125m Ω

Input Type :

Non-Inverting

Switch Type :

GENERAL PURPOSE

Width :

1.7mm

Mounting Type :

Surface Mount

Max Power Dissipation :

667mW

RoHS Status :

ROHS3 Compliant

Weight :

30mg

Number of Terminations :

5

Feature :

Status Flag

Voltage - Supply (Vcc/Vdd) :

Not Required

Operating Temperature :

-40°C~85°C TA

Max Output Current :

400mA

Height :

1.25mm

Mount :

Surface Mount

Length :

3mm

Interface :

On/Off

Built-in Protections :

TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Base Part Number :

FPF2108

Terminal Position :

Dual

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Number of Outputs :

1

Output Type :

P-Channel

Packaging :

Tape and Reel (TR)

Operating Supply Voltage :

5.5V

Number of Functions :

1
