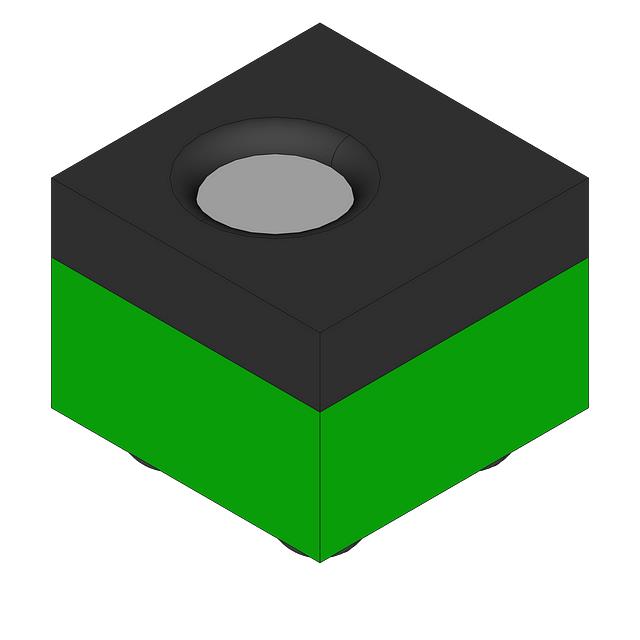

FPF12045UCX

Manufacturer :

Fairchild Semiconductor

Product Category :

Power Distribution Switches, Load Drivers

Lifecycle Status :

LAST SHIPMENTS (Last Updated: 3 days ago)

Number of Channels :

1

Resistance :

185mOhm

Package / Case :

4-UFBGA, WLCSP

Base Part Number :

FPF12045

Output Configuration :

High Side

Terminal Position :

BOTTOM

Number of Pins :

4

Packaging :

Tape and Reel (TR)

JESD-609 Code :

e1

Input Type :

Non-Inverting

Ratio - Input:Output :

1:1

Series :

IntelliMAX™

Factory Lead Time :

19 Weeks

Max Input Voltage :

5.5V

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Voltage - Supply (Vcc/Vdd) :

Not Required

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

Supply Voltage :

3.3V

Voltage :

5.5V

Mounting Type :

Surface Mount

Min Input Voltage :

1.2V

Interface :

On/Off

Output Type :

P-Channel

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Current :

200mA

Length :

760μm

Operating Temperature :

-40°C~85°C TA

Published :

2016

Max Output Current :

2.2A

Weight :

67mg

Type :

GENERAL PURPOSE

Operating Supply Voltage :

5.5V

Width :

760μm

Number of Terminations :

4

ECCN Code :

EAR99

Voltage - Load :

1.2V~5.5V

Switch Type :

GENERAL PURPOSE

Number of Outputs :

1

Terminal Form :

Ball

Mount :

Surface Mount

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Feature :

Load Discharge, Slew Rate Controlled

Number of Functions :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

292μm

Rds On (Typ) :

45m Ω
