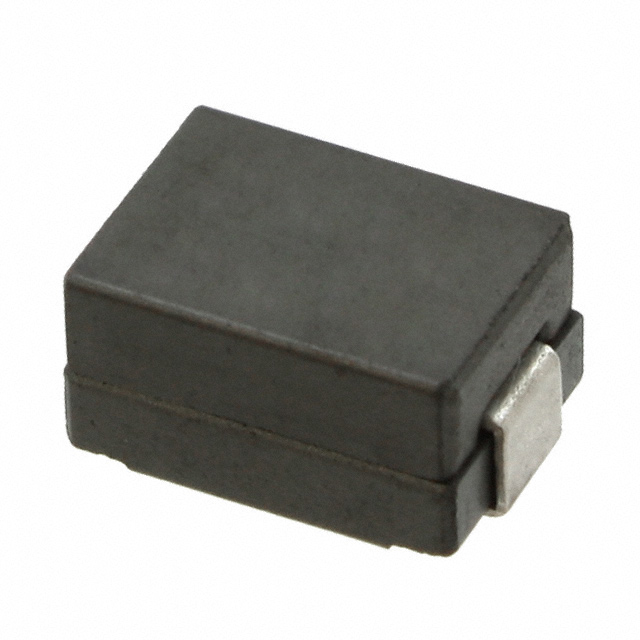

FP4-150-R

Manufacturer :

Eaton-Electronics Division

Product Category :

Fixed Inductors

Operating Temperature :

-40°C~155°C

Height Seated (Max) :

0.197 5.00mm

DC Resistance (DCR) :

0.65mOhm Max

DC Current :

40A

Package / Case :

Nonstandard

Current :

9.2A

Weight :

1.814369g

Published :

2007

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

21 Weeks

Mount :

Surface Mount

Max Operating Temperature :

155°C

Tolerance :

±15%

Test Frequency :

1MHz

Composition :

Wirewound

Length :

10.1854mm

Series :

FLAT-PAC 4

Self Resonant Frequency :

37MHz

Military Standard :

Not

Width :

6.7818mm

Type :

Wirewound

Termination :

SMD/SMT

Material - Core :

Ferrite

Depth :

6.8mm

Min Operating Temperature :

-40°C

Size / Dimension :

0.402Lx0.268W 10.20mmx6.80mm

Packaging :

Tape and Reel (TR)

Lead Free :

Lead Free

Current Rating :

40A

Height :

5mm

RoHS Status :

RoHS Compliant

Current Rating (Amps) :

40A

Max DC Current :

42A

Shielding :

Unshielded

Number of Pins :

2

Radiation Hardening :

No

Current - Saturation :

42A

Inductance :

150nH

Inductance Frequency - Test :

1MHz
