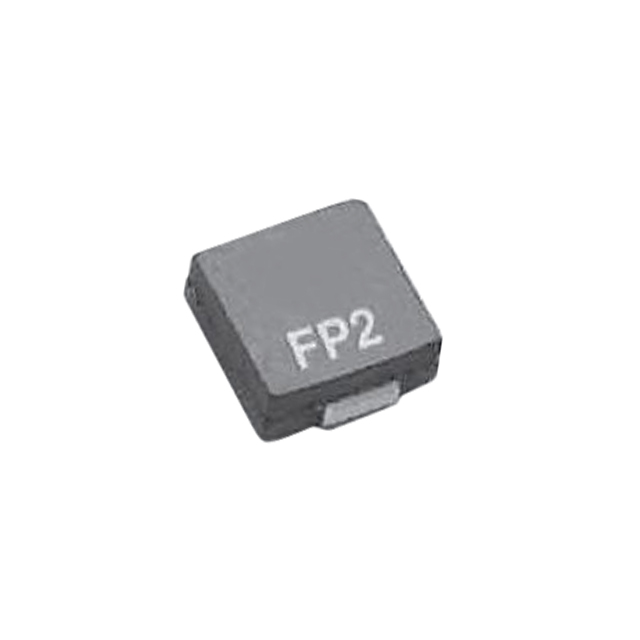

FP2-S047-R
Or copy the link below:
- Mfr.Part #
- FP2-S047-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- FIXED IND 47NH 39A 0.24 MOHM SMD
- Stock
- 2,515
- In Stock ：
- 2,515
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Fixed Inductors
- Depth :
- 6.7mm
- Material - Core :
- Ferrite
- Size / Dimension :
- 0.283Lx0.264W 7.20mmx6.70mm
- Composition :
- Wirewound
- Package / Case :
- Nonstandard
- Inductance :
- 47nH
- Lead Free :
- Lead Free
- Series :
- FLAT-PAC
- Current Rating :
- 39A
- Width :
- 6.7056mm
- Min Operating Temperature :
- -40°C
- Factory Lead Time :
- 14 Weeks
- Length :
- 7.1882mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Surface Mount
- Operating Temperature :
- -40°C~125°C
- Mounting Type :
- Surface Mount
- Type :
- Wirewound
- Tolerance :
- ±15%
- Inductance Frequency - Test :
- 1MHz
- Shielding :
- Unshielded
- Packaging :
- Tape and Reel (TR)
- Radiation Hardening :
- No
- Number of Pins :
- 2
- DC Current :
- 39A
- Weight :
- 907.18474mg
- Published :
- 2014
- Test Frequency :
- 1MHz
- Current - Saturation :
- 42A
- Military Standard :
- Not
- Max DC Current :
- 42A
- DC Resistance (DCR) :
- 0.24mOhm
- Height :
- 3mm
- Max Operating Temperature :
- 125°C
- Termination :
- SMD/SMT
- RoHS Status :
- RoHS Compliant
- Current Rating (Amps) :
- 39A
- Height Seated (Max) :
- 0.118 3.00mm
- Datasheets
- FP2-S047-R
.jpg)
FP2-S047-R datasheet pdf and Fixed Inductors product details from Eaton - Electronics Division stock available at
