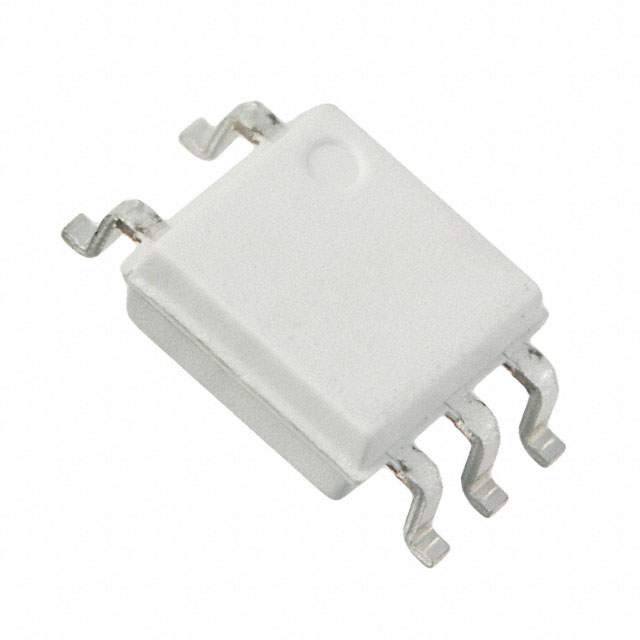

FODM8071R2

Manufacturer :

onsemi

Product Category :

Optoisolators - Logic Output

Inputs - Side 1/Side 2 :

1/0

Number of Channels :

1

ECCN Code :

EAR99

Voltage - Supply :

3V~5.5V

Output Type :

Push-Pull, Totem Pole

Input Current :

10mA

Additional Feature :

CMOS COMPATIBLE, UL RECOGNIZED

Radiation Hardening :

No

Max Power Dissipation :

40mW

Turn On Delay Time :

55 ns

Propagation Delay :

55 ns

Reverse Voltage (DC) :

5V

Package / Case :

6-SOIC (0.173, 4.40mm Width), 5 Leads

REACH SVHC :

No SVHC

Input Type :

DC

Propagation Delay tpLH / tpHL (Max) :

55ns, 55ns

Terminal Finish :

Tin (Sn)

Factory Lead Time :

7 Weeks

Rise / Fall Time (Typ) :

5.8ns 5.3ns

Optoelectronic Device Type :

LOGIC IC OUTPUT OPTOCOUPLER

Response Time :

5.5e-8 ns

Weight :

181.33333mg

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Reverse Breakdown Voltage :

5V

Output Current :

10mA

Voltage - Isolation :

3750Vrms

Forward Current :

20mA

Packaging :

Tape and Reel (TR)

Pbfree Code :

yes

Power Dissipation :

70mW

Operating Temperature :

-40°C~110°C

Common Mode Transient Immunity (Min) :

20kV/μs

Output Current per Channel :

10mA

Configuration :

Single

Max Input Current :

20mA

JESD-609 Code :

e3

Voltage - Forward (Vf) (Typ) :

1.35V

Lead Free :

Lead Free

RoHS Status :

ROHS3 Compliant

Number of Pins :

5

Direction :

Unidirectional

Number of Elements :

1

Fall Time (Typ) :

5.3 ns

Mounting Type :

Surface Mount

Supply Voltage :

5.5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Rise Time :

5.8ns

Mount :

Surface Mount

Published :

2010

Data Rate :

20Mbps
