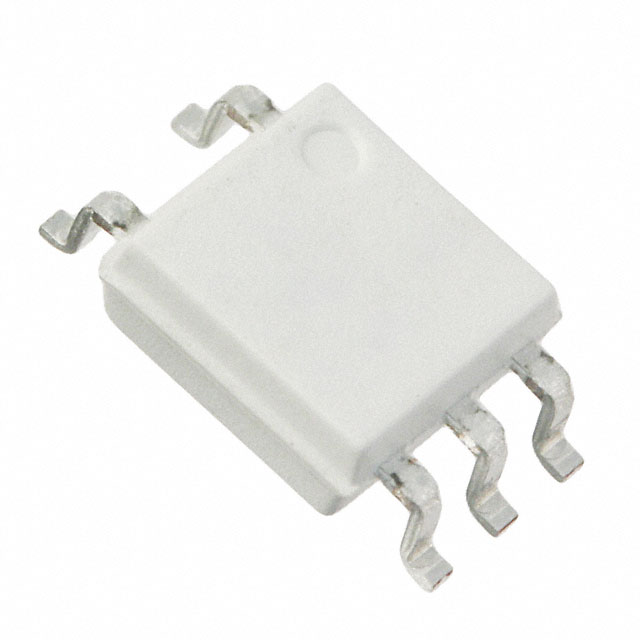

FODM8061V

Manufacturer :

onsemi

Product Category :

Optoisolators - Logic Output

Propagation Delay :

43 ns

Voltage - Isolation :

3750Vrms

JESD-609 Code :

e3

Input Type :

DC

Voltage - Supply :

3V~5.5V

Rise / Fall Time (Typ) :

20ns 10ns

Number of Pins :

5

Output Current per Channel :

50mA

Terminal Finish :

Tin (Sn)

Data Rate :

10Mbps

Voltage - Forward (Vf) (Typ) :

1.45V

Factory Lead Time :

5 Weeks

ECCN Code :

EAR99

Optoelectronic Device Type :

LOGIC IC OUTPUT OPTOCOUPLER

Number of Channels :

1

Mount :

Surface Mount

Fall Time (Typ) :

10 ns

Configuration :

Single

Weight :

181.33333mg

Package / Case :

6-SOIC (0.173, 4.40mm Width), 5 Leads

Packaging :

Tube

Inputs - Side 1/Side 2 :

1/0

Pbfree Code :

yes

Max Power Dissipation :

100mW

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Mounting Type :

Surface Mount

Operating Temperature :

-40°C~110°C

Output Type :

Open Collector, Schottky Clamped

Rise Time :

20ns

Additional Feature :

CMOS COMPATIBLE

RoHS Status :

ROHS3 Compliant

Common Mode Transient Immunity (Min) :

20kV/μs

Propagation Delay tpLH / tpHL (Max) :

80ns, 80ns

Published :

2010

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Input Current :

50mA

Number of Elements :

1
