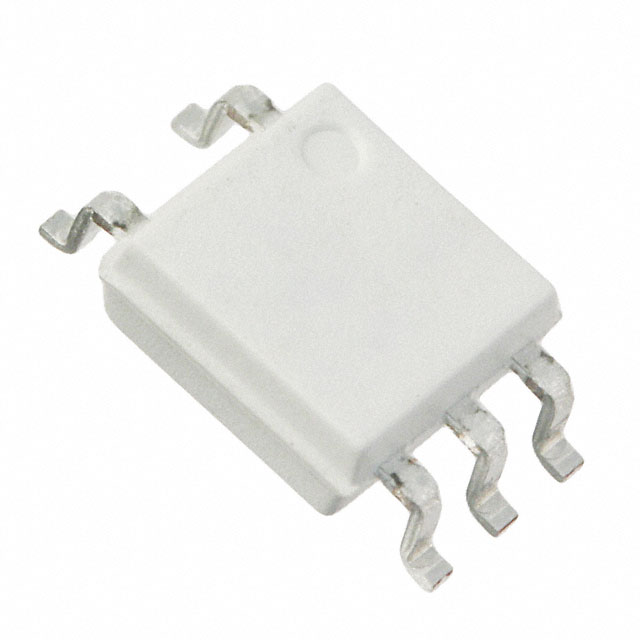

FODM8061R2V

Manufacturer :

onsemi

Product Category :

Optoisolators - Logic Output

JESD-609 Code :

e3

Number of Channels :

1

Common Mode Transient Immunity (Min) :

20kV/μs

Additional Feature :

CMOS COMPATIBLE

Voltage - Isolation :

3750Vrms

Pbfree Code :

yes

Mounting Type :

Surface Mount

ECCN Code :

EAR99

Propagation Delay tpLH / tpHL (Max) :

80ns, 80ns

Factory Lead Time :

5 Weeks

Output Current per Channel :

50mA

Max Power Dissipation :

100mW

Package / Case :

6-SOIC (0.173, 4.40mm Width), 5 Leads

Lead Free :

Lead Free

Mount :

Surface Mount

Data Rate :

10Mbps

Voltage - Forward (Vf) (Typ) :

1.45V

Number of Elements :

1

Optoelectronic Device Type :

LOGIC IC OUTPUT OPTOCOUPLER

Inputs - Side 1/Side 2 :

1/0

RoHS Status :

ROHS3 Compliant

Rise / Fall Time (Typ) :

20ns 10ns

Output Type :

Open Collector, Schottky Clamped

Rise Time :

20ns

Configuration :

Single

Terminal Finish :

Tin (Sn)

Input Type :

DC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Weight :

181.33333mg

Operating Temperature :

-40°C~110°C

Number of Pins :

5

Fall Time (Typ) :

10 ns

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Published :

2010

Packaging :

Tape and Reel (TR)

Voltage - Supply :

3V~5.5V

Propagation Delay :

80 ns
