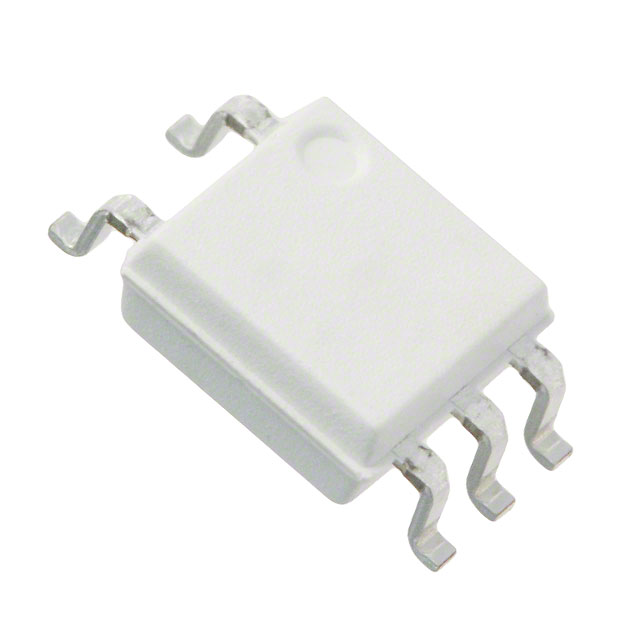

FODM611

Manufacturer :

onsemi

Product Category :

Optoisolators - Logic Output

Output Type :

Open Collector, Schottky Clamped

Number of Pins :

5

Configuration :

Single

Propagation Delay tpLH / tpHL (Max) :

100ns, 100ns

ECCN Code :

EAR99

Reverse Voltage (DC) :

5V

Supply Voltage :

5.5V

Max Input Voltage :

5.5V

Package / Case :

6-SOIC (0.173, 4.40mm Width), 5 Leads

Power Dissipation :

100mW

Input Current :

15mA

Max Input Current :

50mA

Rise Time :

20ns

Response Time :

1e-7 ns

Fall Time (Typ) :

10 ns

Packaging :

Tube

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Inputs - Side 1/Side 2 :

1/0

Weight :

181.33333mg

Common Mode Transient Immunity (Min) :

20kV/μs

Voltage - Forward (Vf) (Typ) :

1.45V

Input Type :

DC

Number of Elements :

1

Max Power Dissipation :

100mW

RoHS Status :

ROHS3 Compliant

Nominal Input Voltage :

5V

Number of Channels :

1

Published :

2010

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Output Current per Channel :

50mA

Terminal Finish :

Tin (Sn)

Data Rate :

10Mbps

Voltage - Isolation :

3750Vrms

Mounting Type :

Surface Mount

JESD-609 Code :

e3

Max Output Voltage :

5V

Forward Current :

50mA

Optoelectronic Device Type :

LOGIC IC OUTPUT OPTOCOUPLER

Output Voltage :

5V

Mount :

Surface Mount

Propagation Delay :

43 ns

Rise / Fall Time (Typ) :

20ns 10ns

Factory Lead Time :

7 Weeks

Voltage - Supply :

4.5V~5.5V

Additional Feature :

MICROPROCESSOR SYSTEM INTERFACE, UL APPROVED

Reverse Breakdown Voltage :

5V

Operating Temperature :

-40°C~85°C

Pbfree Code :

yes

Lead Free :

Lead Free
