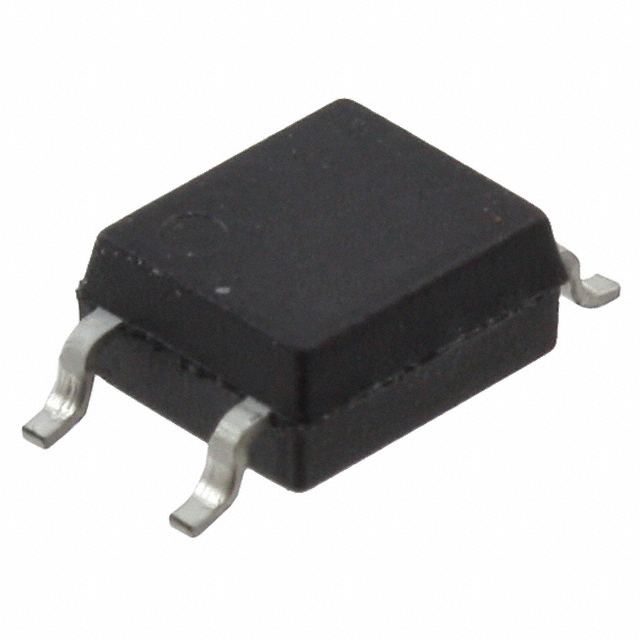

FODM2705R2

Manufacturer :

onsemi

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Number of Elements :

1

Collector Emitter Voltage (VCEO) :

300mV

Contact Plating :

Tin

Fall Time (Typ) :

3 μs

Max Collector Current :

80mA

Forward Current :

50mA

Configuration :

Single

Published :

2009

Additional Feature :

UL RECOGNIZED

Current Transfer Ratio (Min) :

50% @ 5mA

Lead Free :

Lead Free

REACH SVHC :

No SVHC

Packaging :

Tape and Reel (TR)

Current Transfer Ratio (Max) :

300% @ 5mA

Max Input Current :

50mA

Max Output Voltage :

40V

Input Current :

50mA

Max Power Dissipation :

150mW

Operating Temperature :

-40°C~110°C

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Rise / Fall Time (Typ) :

3μs 3μs

Input Type :

AC, DC

Pbfree Code :

yes

Rise Time :

3μs

Number of Pins :

4

Output Current per Channel :

80mA

ECCN Code :

EAR99

Collector Emitter Saturation Voltage :

300mV

Package / Case :

4-SMD, Gull Wing

Factory Lead Time :

7 Weeks

Voltage - Isolation :

3750Vrms

Radiation Hardening :

No

Mounting Type :

Surface Mount

Weight :

155mg

Output Type :

Transistor

Output Voltage :

40V

Reverse Voltage (DC) :

6V

Power Dissipation :

150mW

Mount :

Surface Mount

Number of Channels :

1

Voltage - Forward (Vf) (Typ) :

1.4V Max

JESD-609 Code :

e3

Reverse Breakdown Voltage :

6V
