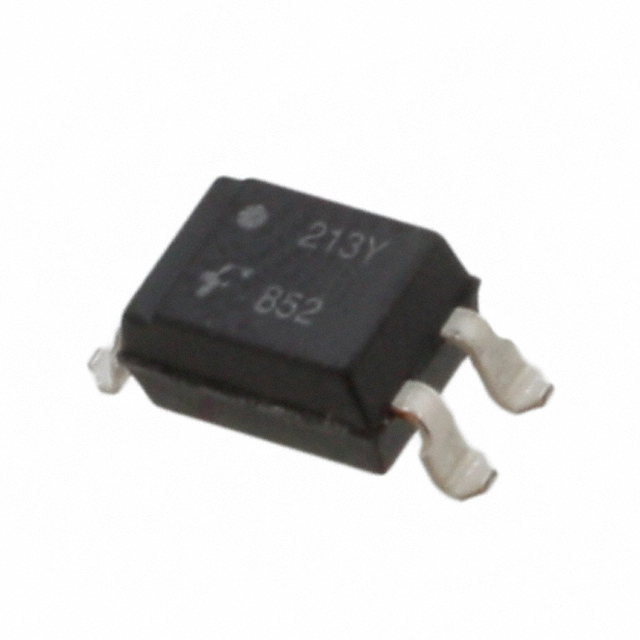

FOD852S

Share

Or copy the link below:

Mfr.Part #
FOD852S
Manufacturer
onsemi
Package / Case
4-SMD, Gull Wing
Datasheet
Download
Description
OPTOISOLATOR 5KV DARLINGTON 4SMD
Stock
2,437
In Stock :
2,437

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
onsemi
Product Category :
Optoisolators - Transistor, Photovoltaic Output
Number of Elements :
1
Mounting Type :
Surface Mount
Lifecycle Status :
ACTIVE (Last Updated: 19 hours ago)
Max Output Voltage :
300V
Current Transfer Ratio (Min) :
1000% @ 1mA
Packaging :
Tube
JESD-609 Code :
e3
Rise / Fall Time (Typ) :
100μs 20μs
Forward Current :
50mA
Terminal Finish :
Tin (Sn)
Weight :
0g
Max Collector Current :
150mA
Fall Time (Typ) :
100 µs
Configuration :
SINGLE WITH BUILT-IN DIODE AND RESISTOR
Number of Pins :
4
Max Input Current :
50mA
Package / Case :
4-SMD, Gull Wing
Rise Time :
300µs
REACH SVHC :
No SVHC
RoHS Status :
ROHS3 Compliant
Max Power Dissipation :
150mW
Power Dissipation :
150mW
Reverse Breakdown Voltage :
6V
Collector Emitter Saturation Voltage :
1.2V
Collector Emitter Voltage (VCEO) :
1.2V
Input Type :
DC
Pbfree Code :
yes
Mount :
Surface Mount
ECCN Code :
EAR99
Current Transfer Ratio (Max) :
15000% @ 1mA
Published :
2006
Output Voltage :
300V
Operating Temperature :
-30°C~100°C
Output Type :
Darlington
Factory Lead Time :
8 Weeks
Additional Feature :
UL RECOGNIZED
Output Current per Channel :
150mA
Input Current :
10mA
Response Time-Max :
0.0003s
Voltage - Isolation :
5000Vrms
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Lead Free :
Lead Free
Dark Current-Max :
200nA
Introducing Optoisolators - Transistor, Photovoltaic Output onsemi FOD852S from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, Number of Pins:4, Package / Case:4-SMD, Gull Wing, Operating Temperature:-30°C~100°C, FOD852S pinout, FOD852S datasheet PDF, FOD852S amp .Beyond Optoisolators - Transistor, Photovoltaic Output onsemi FOD852S ,we also offer LTV-814S-TA1, LTV-827S-TA1, LTV-814HS-TA1, Our vast inventory has you covered. Contact us now for immediate solutions.

onsemi FOD852S


FOD852S datasheet pdf and Optoisolators - Transistor, Photovoltaic Output product details from ON Semiconductor stock available at
