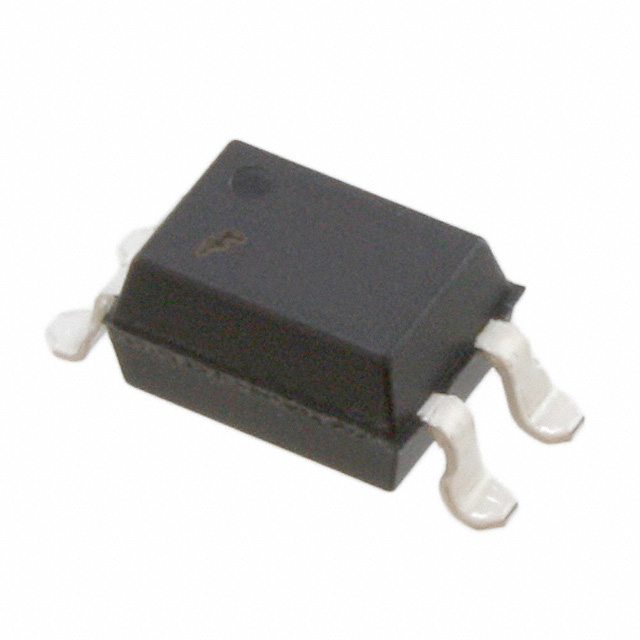

FOD817D3S

Manufacturer :

onsemi

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Collector Emitter Voltage (VCEO) :

200mV

Weight :

0g

Fall Time (Typ) :

18 μs

Current Transfer Ratio (Max) :

600% @ 5mA

Package / Case :

4-SMD, Gull Wing

Max Power Dissipation :

200mW

Mount :

Surface Mount

Pbfree Code :

yes

Voltage - Forward (Vf) (Typ) :

1.2V

Additional Feature :

UL APPROVED, VDE APPROVED

Lead Free :

Lead Free

Operating Temperature :

-55°C~110°C

Max Collector Current :

50mA

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Type :

Transistor

Reverse Breakdown Voltage :

6V

Terminal Finish :

Tin (Sn)

Forward Current :

50mA

Published :

2009

Mounting Type :

Surface Mount

RoHS Status :

ROHS3 Compliant

Rise / Fall Time (Typ) :

4μs 3μs

Number of Pins :

4

Configuration :

Single

Collector Emitter Saturation Voltage :

200mV

Current Transfer Ratio (Min) :

300% @ 5mA

Max Input Current :

50mA

Number of Elements :

1

Packaging :

Tube

Factory Lead Time :

7 Weeks

Output Voltage :

70V

Power Dissipation :

200mW

Input Type :

DC

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

JESD-609 Code :

e3

Rise Time :

18μs

Voltage - Isolation :

5000Vrms

Output Current per Channel :

50mA
