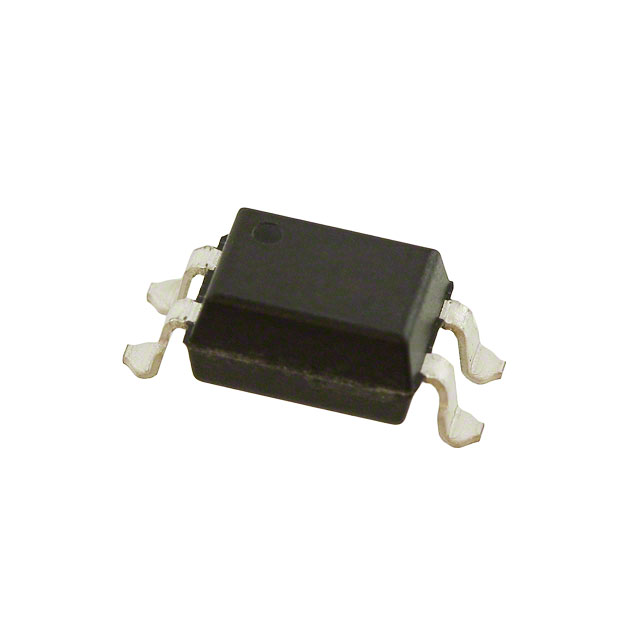

FOD817CS

Manufacturer :

onsemi

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Output Voltage :

70V

Number of Pins :

4

Radiation Hardening :

No

Additional Feature :

UL APPROVED

Voltage - Forward (Vf) (Typ) :

1.2V

Fall Time (Typ) :

18 μs

Forward Current :

50mA

RoHS Status :

ROHS3 Compliant

Reverse Breakdown Voltage :

6V

Pbfree Code :

yes

Number of Elements :

1

Output Type :

Transistor

Mounting Type :

Surface Mount

Collector Emitter Saturation Voltage :

200mV

Power Dissipation :

200mW

Packaging :

Tape and Reel (TR)

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Transfer Ratio (Min) :

200% @ 5mA

Length :

5.1mm

Max Collector Current :

50mA

Published :

2002

Width :

7mm

Collector Emitter Voltage (VCEO) :

200mV

Current Transfer Ratio (Max) :

400% @ 5mA

Voltage - Isolation :

5000Vrms

Terminal Finish :

Tin (Sn)

Rise Time :

18μs

Output Current per Channel :

50mA

Operating Temperature :

-55°C~110°C

Rise / Fall Time (Typ) :

4μs 3μs

Input Type :

DC

Configuration :

Single

Height :

4mm

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Input Current :

50mA

Package / Case :

4-SMD, Gull Wing

ECCN Code :

EAR99

Max Power Dissipation :

200mW

Max Output Voltage :

70V

Factory Lead Time :

7 Weeks

Weight :

0g

Mount :

Surface Mount

Max Input Current :

50mA

Lead Free :

Lead Free

REACH SVHC :

No SVHC
