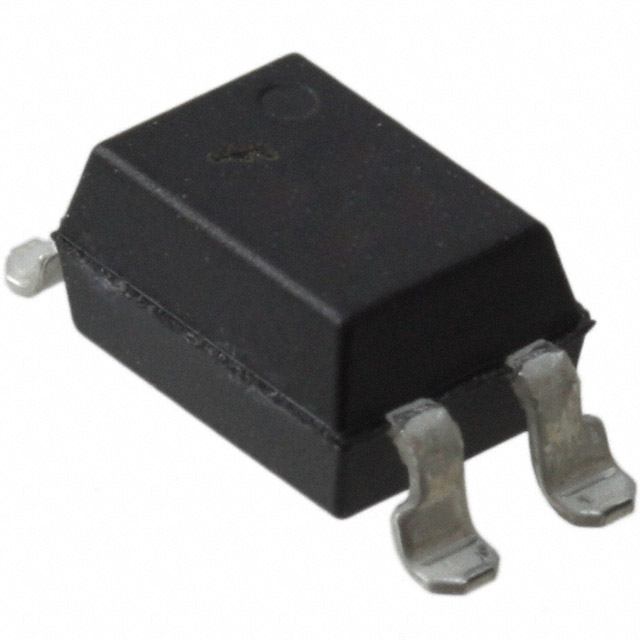

FOD817BSD

Manufacturer :

onsemi

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Max Junction Temperature (Tj) :

125°C

Max Collector Current :

50mA

Operating Temperature :

-55°C~110°C

Package / Case :

4-SMD, Gull Wing

Collector Emitter Saturation Voltage :

200mV

Reverse Voltage (DC) :

6V

Current Transfer Ratio (Max) :

260% @ 5mA

Voltage - Isolation :

5000Vrms

Additional Feature :

UL APPROVED

Number of Pins :

4

REACH SVHC :

No SVHC

Reverse Breakdown Voltage :

6V

Mounting Type :

Surface Mount

Max Output Voltage :

70V

Voltage - Forward (Vf) (Typ) :

1.2V

Lead Free :

Lead Free

Reverse Voltage :

6V

Mount :

Surface Mount

Power Dissipation :

200mW

Output Type :

Transistor

Width :

7mm

Length :

5.1mm

Number of Elements :

1

Packaging :

Tape and Reel (TR)

Output Current per Channel :

50mA

Input Current :

50mA

Pbfree Code :

yes

ECCN Code :

EAR99

Rise / Fall Time (Typ) :

4μs 3μs

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Input Current :

50mA

Radiation Hardening :

No

Factory Lead Time :

8 Weeks

Contact Plating :

Tin

Input Type :

DC

JESD-609 Code :

e3

Weight :

0g

Configuration :

Single

Max Power Dissipation :

200mW

Fall Time (Typ) :

18 μs

Output Voltage :

70V

RoHS Status :

ROHS3 Compliant

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Rise Time :

18μs

Collector Emitter Voltage (VCEO) :

70V

Current Transfer Ratio (Min) :

130% @ 5mA

Height :

4.35mm

Forward Current :

50mA

Published :

2002
