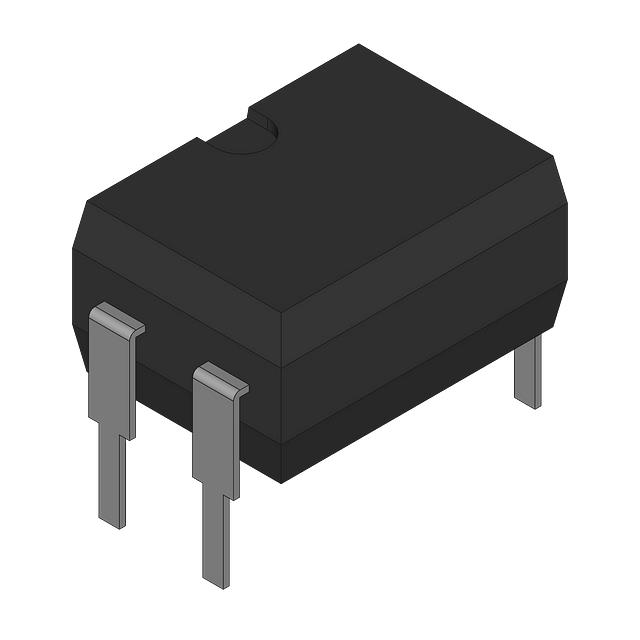

FOD617A

Manufacturer :

Fairchild Semiconductor

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Mounting Type :

Through Hole

Current Transfer Ratio (Min) :

40% @ 10mA

Forward Current-Max :

0.05A

Terminal Finish :

MATTE TIN

Configuration :

Single

Package / Case :

4-DIP (0.300, 7.62mm)

Reach Compliance Code :

Unknown

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Coll-Emtr Bkdn Voltage-Min :

70V

Rise / Fall Time (Typ) :

4μs 3μs

Current Transfer Ratio (Max) :

80% @ 10mA

Vce Saturation (Max) :

400mV

Voltage - Output (Max) :

70V

Voltage - Forward (Vf) (Typ) :

1.35V

JESD-609 Code :

e3

RoHS Status :

ROHS3 Compliant

Number of Channels :

1

Additional Feature :

UL RECOGNIZED

Current - Output / Channel :

50mA

Pbfree Code :

yes

Number of Elements :

1

Input Type :

DC

Voltage - Isolation :

5000Vrms

Output Type :

Transistor

Packaging :

Tube

Operating Temperature :

-55°C~110°C

Dark Current-Max :

50nA
