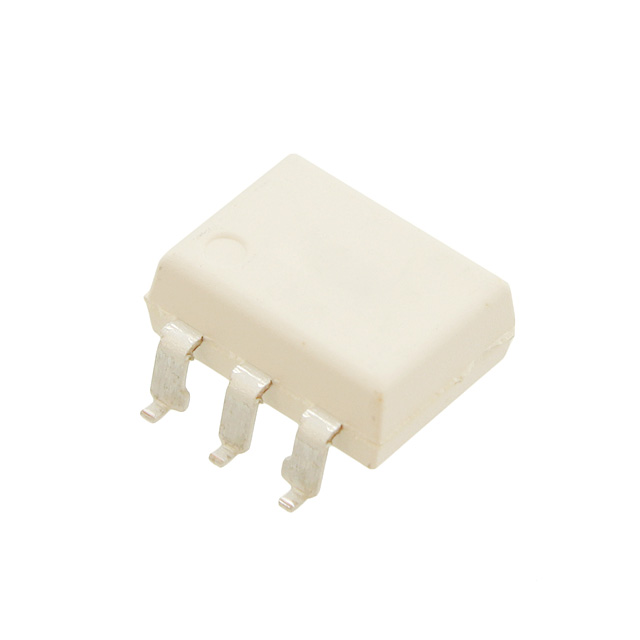

FOD4218SD

Manufacturer :

onsemi

Product Category :

Optoisolators - Triac, SCR Output

Approval Agency :

cUL, FIMKO, UL

On-State Current-Max :

0.3A

Factory Lead Time :

9 Weeks

RMS Current (Irms) :

300mA

Number of Pins :

6

JESD-609 Code :

e3

On-State Voltage-Max :

3V

Additional Feature :

UL RECOGNIZED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Finish :

Tin (Sn)

Pbfree Code :

yes

Reverse Breakdown Voltage :

6V

Package / Case :

6-SMD, Gull Wing

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Voltage - Off State :

800V

Current - LED Trigger (Ift) (Max) :

1.3mA

Mount :

Surface Mount

Output Current per Channel :

300mA

Power Dissipation :

500mW

Static dV/dt (Min) :

10kV/μs

Output Current :

300mA

Input Trigger Current-Nom :

0.75mA

Operating Temperature :

-55°C~100°C

Current - Hold (Ih) :

500μA

REACH SVHC :

No SVHC

Mounting Type :

Surface Mount

Repetitive Peak Off-state Voltage :

800V

Packaging :

Tape and Reel (TR)

Output Type :

Triac

Number of Elements :

1

Number of Channels :

1

Zero Crossing Circuit :

No

Published :

2009

Forward Current :

30mA

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Peak Surge Current :

3A

Configuration :

Single

Input Current :

20mA

Nominal Input Voltage :

1.28V

Voltage - Isolation :

5000Vrms

Turn On Delay Time :

60 μs

Max Input Voltage :

1.5V

Hold Current :

500μA

Weight :

0g
