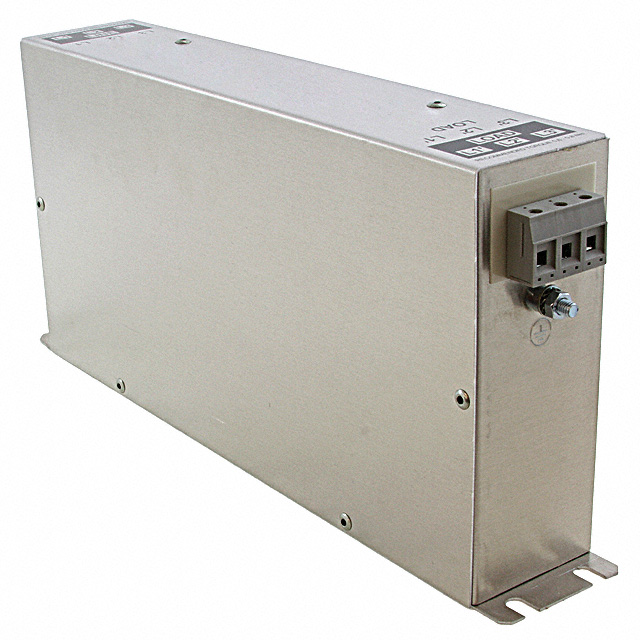

FN258P-16-29
Or copy the link below:
- Mfr.Part #
- FN258P-16-29
- Manufacturer
- Schaffner EMC, Inc.
- Package / Case
- Datasheet
- Download
- Description
- LINE FILTER 16A CHASSIS MOUNT
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schaffner EMC, Inc.
- Product Category :
- Power Line Filter Modules
- RoHS Status :
- RoHS Compliant
- Termination Style :
- Terminal Block
- Height :
- 142mm
- Applications :
- Inverters, Power Drive Systems
- Series :
- FN 258
- Approval Agency :
- CSA, ENEC, UR
- Filter Type :
- Three Phase (Delta)
- Leakage Current (Max) :
- 3.3mA
- Mounting Type :
- Chassis Mount
- Max Current Rating :
- 16A
- Width :
- 55mm
- Pbfree Code :
- yes
- Voltage - Rated AC :
- 277V
- Voltage - Rated :
- 480V
- Operating Temperature :
- -25°C~100°C
- High Pot :
- 2100 V
- Published :
- 2008
- Frequency - Operating :
- DC~60Hz
- Max Voltage Rating (AC) :
- 480V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Chassis Mount, Flanges
- Frequency :
- 60Hz
- Current Rating :
- 16A
- Configuration :
- Two Stage
- Packaging :
- Tray
- Factory Lead Time :
- 10 Weeks
- Physical Dimension :
- L275.0XB55.0XH142.0 (mm)/L10.827XB2.165XH5.591 (inch)
- Depth :
- 55mm
- Ratings :
- IP20
- Length :
- 55mm
- Termination :
- Terminal Block
- Datasheets
- FN258P-16-29
FN258P-16-29 datasheet pdf and Power Line Filter Modules product details from Schaffner EMC Inc. stock available at
