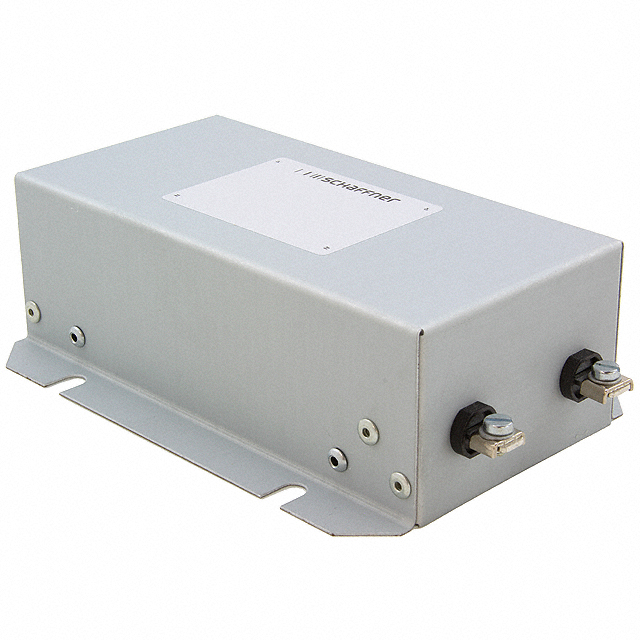

FN258L-7-29
Or copy the link below:
- Mfr.Part #
- FN258L-7-29
- Manufacturer
- Schaffner EMC, Inc.
- Package / Case
- Datasheet
- Download
- Description
- LINE FILTER 7A CHASSIS MOUNT
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schaffner EMC, Inc.
- Product Category :
- Power Line Filter Modules
- Mounting Type :
- Chassis Mount
- Series :
- FN 258
- Factory Lead Time :
- 10 Weeks
- High Pot :
- 2100 V
- Voltage - Rated :
- 480V
- Current Rating :
- 7A
- Depth :
- 50mm
- Frequency - Operating :
- DC~60Hz
- Packaging :
- Tray
- Length :
- 255mm
- Termination :
- Terminal Block
- Pbfree Code :
- yes
- Height :
- 126mm
- Physical Dimension :
- L225.0XB50.0XH126.0 (mm)/L8.858XB1.969XH4.961 (inch)
- Mount :
- Chassis Mount
- Max Current Rating :
- 7A
- Leakage Current (Max) :
- 0.8mA
- Termination Style :
- Terminal Block
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Approval Agency :
- CSA, ENEC, UR
- Published :
- 2014
- Frequency :
- 60Hz
- Filter Type :
- Three Phase (Delta)
- Voltage - Rated AC :
- 277V
- Voltage - Rated AC (Phase to Ground/Neutral) :
- 277V
- RoHS Status :
- RoHS Compliant
- Applications :
- Inverters, Power Drive Systems
- Configuration :
- Two Stage
- Operating Temperature :
- -25°C~100°C
- Datasheets
- FN258L-7-29
