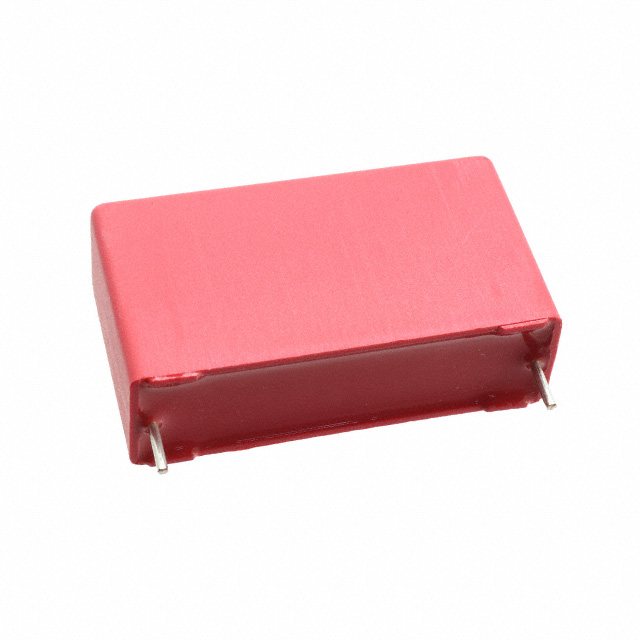

FKP1U023307C00MSSD
Or copy the link below:
- Mfr.Part #
- FKP1U023307C00MSSD
- Manufacturer
- WIMA
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.033UF 20% 2KVDC RAD
- Stock
- 254
- In Stock ：
- 254
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- WIMA
- Product Category :
- Film Capacitors
- Height Seated (Max) :
- 0.945 24.00mm
- Additional Feature :
- RATED AC VOLTAGE (V): 700
- Length :
- 41.5mm
- Mounting Type :
- Through Hole
- Capacitance :
- 0.033µF
- Operating Temperature :
- -55°C~100°C
- Lead Spacing :
- 1.476 37.50mm
- Dielectric Material :
- Polypropylene (PP), Metallized
- ECCN Code :
- EAR99
- Capacitor Type :
- FILM CAPACITOR
- Terminal Shape :
- Wire
- Voltage - Rated DC :
- 2000V 2kV
- Terminal Pitch :
- 37.5mm
- Rated (AC) Voltage (URac) :
- 700V
- Pbfree Code :
- yes
- Factory Lead Time :
- 11 Weeks
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Tolerance :
- ±20%
- JESD-609 Code :
- e3
- Terminal Finish :
- Tin (Sn)
- Termination :
- PC Pins
- Package / Case :
- Radial
- Surface Mount :
- No
- HTS Code :
- 8532.25.00.70
- Applications :
- High Frequency, Switching; High Pulse, DV/DT
- RoHS Status :
- ROHS3 Compliant
- Number of Terminations :
- 2
- Size / Dimension :
- 1.634Lx0.512W 41.50mmx13.00mm
- Voltage - Rated AC :
- 700V
- Width :
- 13mm
- Rated (DC) Voltage (URdc) :
- 2000V
- Packaging :
- Bulk
- Datasheets
- FKP1U023307C00MSSD
0.033μF Film Capacitor ±20% Radial PC Pins 2000V 2kV-DC 700V-AC Polypropylene (PP), Metallized
FKP1U023307C00MSSD Overview
To work properly, systems need a rated (DC) voltage of 2000V.Electrical devices such as this have a lead spacing of 1.476 37.50mm.Systems require a voltage of 700V for their internal rated power (URac).In addition to operating at -55°C~100°C degrees, the device is capable of operating at other temperatures as well.
FKP1U023307C00MSSD Features
a rated (DC) voltage (URdc) of 2000V
an internal rated (AC) voltage (URac) of 700V
FKP1U023307C00MSSD Applications
There are a lot of WIMA
FKP1U023307C00MSSD applications of film capacitors.
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
- IGBT
- Compact fluorescent lamps (CFL)
- Switch mode power supplies
