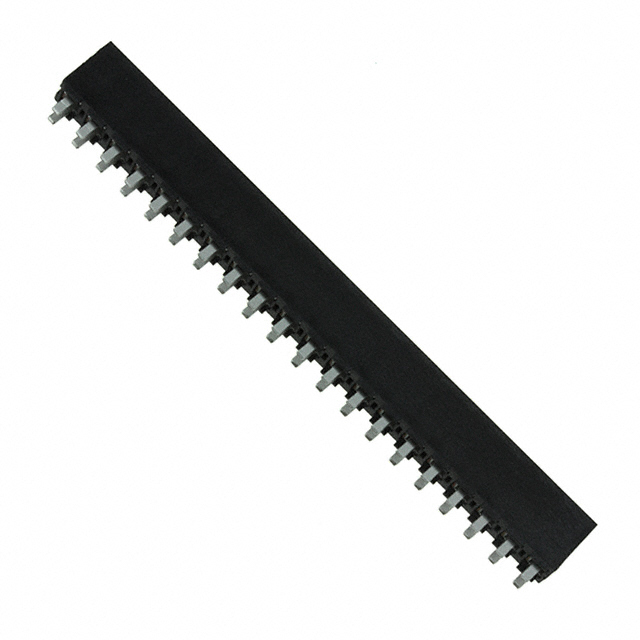

FHP-20-01-T-S
Or copy the link below:
- Mfr.Part #
- FHP-20-01-T-S
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 20POS 0.156 TIN PCB
- Stock
- 62
- In Stock ：
- 62
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- Mounting Type :
- Through Hole
- IEC Conformance :
- No
- Published :
- 2000
- Empty Shell :
- No
- Insulation Height :
- 0.350 8.89mm
- Contact Shape :
- Square
- JESD-609 Code :
- e3
- Factory Lead Time :
- 6 Weeks
- DIN Conformance :
- No
- Contact Type :
- Female Socket
- Pitch - Mating :
- 0.156 3.96mm
- HTS Code :
- 8536.69.40.30
- Option :
- GENERAL PURPOSE
- Width :
- 5.08mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Fastening Type :
- Push-Pull
- Style :
- Board to Board
- Number of Contacts :
- 20
- Contact Length - Post :
- 0.102 2.60mm
- Contact Material :
- Phosphor Bronze
- Housing Color :
- Black
- MIL Conformance :
- No
- Series :
- FHP
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Housing Material :
- Polymer
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- yes
- Number of Positions Loaded :
- All
- ECCN Code :
- EAR99
- Filter Feature :
- No
- Connector Type :
- Receptacle
- REACH SVHC :
- No SVHC
- Number of Rows :
- 1
- Mixed Contacts :
- No
- Termination :
- Solder
- Packaging :
- Tube
- Orientation :
- Straight
- Radiation Hardening :
- No
- Length :
- 79.2mm
- Lead Free :
- Lead Free
- Operating Temperature :
- -55°C~105°C
- Contact Finish - Mating :
- Tin
- Depth :
- 5.08mm
- Datasheets
- FHP-20-01-T-S
FHP-20-01-T-S Documents
1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Tin Liquid Crystal Polymer (LCP) Female Socket
FHP-20-01-T-S Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the FHP Series.By Through Hole, the part is mounted.Operating temperature is set to -55°C~105°C.
FHP-20-01-T-S Features
FHP series
FHP-20-01-T-S Applications
There are a lot of Samtec Inc.
FHP-20-01-T-S Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
