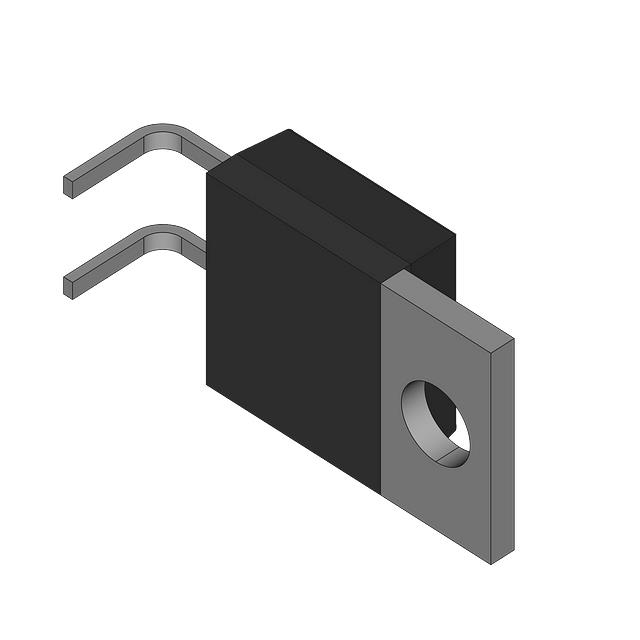

FFSP10120A

Manufacturer :

onsemi

Product Category :

Diodes - Rectifiers - Single

Package / Case :

TO-220-2

Reverse Current-Max :

200μA

Number of Terminations :

2

Max Repetitive Reverse Voltage (Vrrm) :

1.2kV

Capacitance @ Vr, F :

612pF @ 1V 100kHz

Max Forward Surge Current (Ifsm) :

90A

Current - Average Rectified (Io) :

10A DC

Number of Phases :

1

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Mount :

Through Hole

JEDEC-95 Code :

TO-220AC

Number of Elements :

1

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Application :

EFFICIENCY

Output Current-Max :

10A

Diode Type :

Silicon Carbide Schottky

Voltage - DC Reverse (Vr) (Max) :

1200V

Operating Temperature (Max) :

175°C

Additional Feature :

HIGH RELIABILITY, PD-CASE

Pbfree Code :

yes

Current - Reverse Leakage @ Vr :

200μA @ 1200V

Voltage - Forward (Vf) (Max) @ If :

1.75V @ 10A

Rep Pk Reverse Voltage-Max :

1200V

Packaging :

Tube

Operating Temperature - Junction :

-55°C~175°C

JESD-609 Code :

e3

Element Configuration :

Single

Weight :

2.16g

Factory Lead Time :

10 Weeks

Published :

2016

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-30 Code :

R-PSFM-T2

RoHS Status :

ROHS3 Compliant

Terminal Finish :

Tin (Sn)

Power Dissipation-Max :

168W

Mounting Type :

Through Hole
