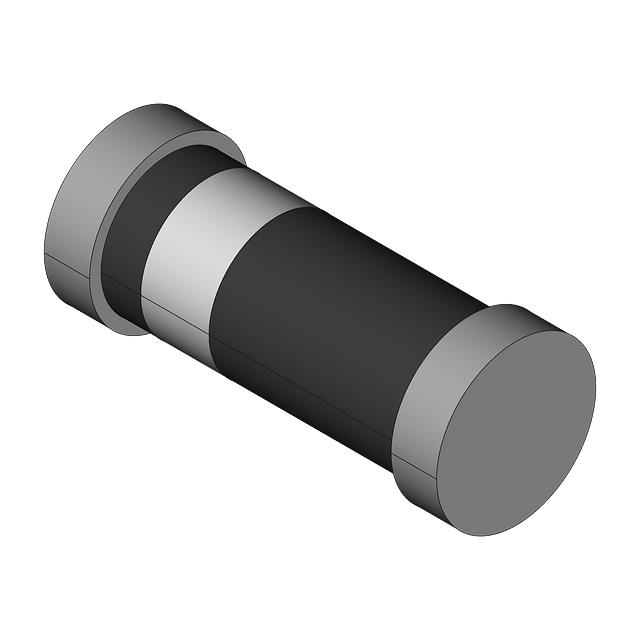

FDLL485B

Manufacturer :

onsemi

Product Category :

Diodes - Rectifiers - Single

Capacitance :

6pF

Package / Case :

DO-213AC, MINI-MELF, SOD-80

Number of Pins :

34

Operating Temperature - Junction :

-65°C~200°C

Capacitance @ Vr, F :

6pF @ 0V 1MHz

Power Dissipation :

500mW

Packaging :

Tape and Reel (TR)

Min Operating Temperature :

-65°C

Published :

2013

JESD-30 Code :

O-LELF-R2

Factory Lead Time :

20 Weeks

Diode Type :

Standard

Base Part Number :

FDLL485

Pbfree Code :

yes

Lead Free :

Lead Free

ECCN Code :

EAR99

Speed :

Small Signal =< 200mA (Io), Any Speed

Peak Reverse Current :

25nA

Current Rating :

200mA

Max Repetitive Reverse Voltage (Vrrm) :

200V

Number of Elements :

1

Mounting Type :

Surface Mount

Radiation Hardening :

No

Average Rectified Current :

200mA

Mount :

Surface Mount

Voltage - Rated DC :

200V

Terminal Position :

END

RoHS Status :

ROHS3 Compliant

Length :

3.6mm

Max Reverse Leakage Current :

25nA

Terminal Finish :

Tin (Sn)

Number of Terminations :

2

Case Connection :

Isolated

Element Configuration :

Single

Diameter :

1.5mm

Forward Current :

200mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Current :

200mA

Weight :

51.84mg

Terminal Form :

WRAP AROUND

Peak Non-Repetitive Surge Current :

4A

Max Reverse Voltage (DC) :

180V

JESD-609 Code :

e3

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Max Operating Temperature :

200°C

Max Surge Current :

4A

HTS Code :

8541.10.00.70

Voltage - Forward (Vf) (Max) @ If :

1V @ 100mA

Diode Element Material :

SILICON

Forward Voltage :

1V

Current - Reverse Leakage @ Vr :

25nA @ 180V
