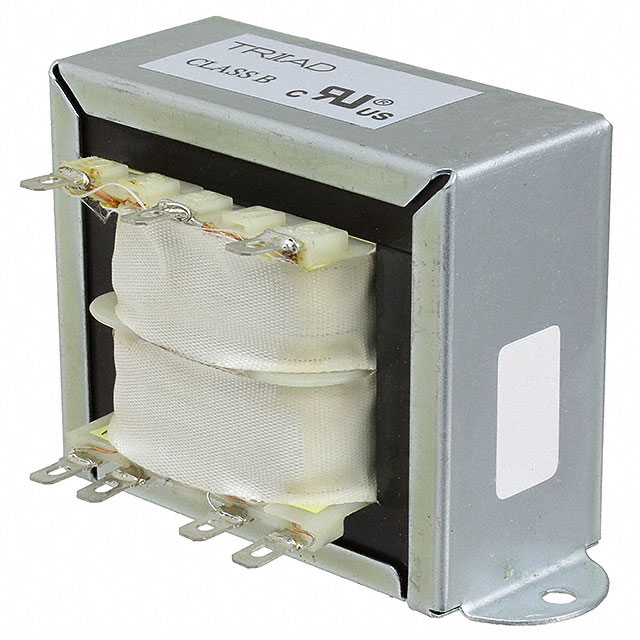

FD8-36
Or copy the link below:
- Mfr.Part #
- FD8-36
- Manufacturer
- Triad Magnetics
- Package / Case
- Datasheet
- Download
- Description
- PWR XFMR LAMINATED 100VA CHAS MT
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Triad Magnetics
- Product Category :
- Power Transformers
- Power Rating :
- 100W
- Voltage - Isolation :
- 2500VAC
- Lead Free :
- Lead Free
- Factory Lead Time :
- 17 Weeks
- VA Rating :
- 100 VA
- Voltage - Primary :
- 115V 230V
- Output Voltage 1 :
- 36V
- Mounting Type :
- Chassis Mount
- Number of Pins :
- 7
- Primary Winding(s) :
- Dual
- Height :
- 65.0748mm
- Type :
- Laminated Core
- Series :
- Quick Pack
- Termination Style :
- Solder, Quick Connect - 0.187 (4.7mm)
- Mount :
- Chassis Mount, Flanges, Panel
- Pbfree Code :
- yes
- Termination :
- Quick Connect
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Center Tap :
- yes
- Approval Agency :
- UL
- Application :
- Power
- Published :
- 2014
- Voltage - Secondary (Full Load) :
- 36V
- Size / Dimension :
- 102.39mm Lx57.15mm W
- Power - Max :
- 100VA
- RoHS Status :
- ROHS3 Compliant
- HTS Code :
- 8504.31.40.65
- Secondary Winding(s) :
- Single
- Output Current :
- 2.8A
- Weight :
- 2.8lbs 1.3kg
- Max Power Dissipation :
- 100W
- Height Seated (Max) :
- 65.07mm
- ECCN Code :
- EAR99
- Datasheets
- FD8-36
