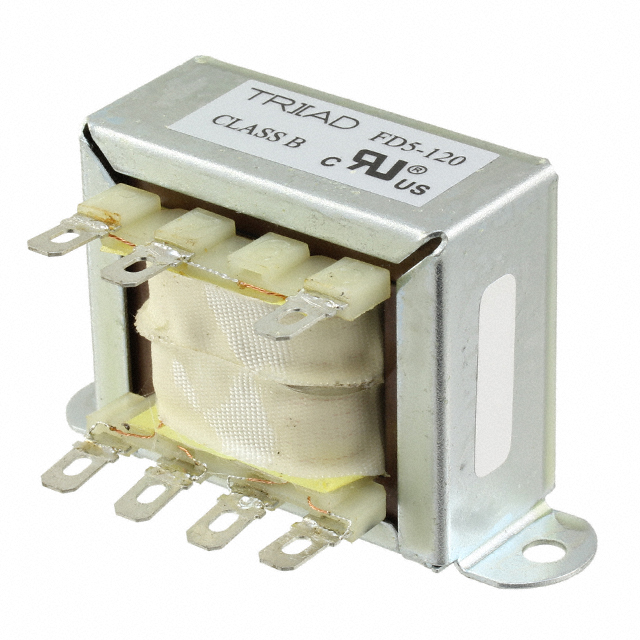

FD5-120
Or copy the link below:
- Mfr.Part #
- FD5-120
- Manufacturer
- Triad Magnetics
- Package / Case
- Datasheet
- Download
- Description
- PWR XFMR LAMINATED 12VA CHAS MT
- Stock
- 46,046
- In Stock ：
- 46,046
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Triad Magnetics
- Product Category :
- Power Transformers
- Secondary Winding(s) :
- Single
- Voltage - Secondary (Full Load) :
- 120V
- Output Current :
- 100mA
- Weight :
- 0.7lb 317.51g
- Mounting Type :
- Chassis Mount
- Primary Winding(s) :
- Dual
- Type :
- Laminated Core
- Number of Pins :
- 7
- Current - Output (Max) :
- 100mA
- Lead Free :
- Lead Free
- Height :
- 41.3mm
- Termination Style :
- Solder, Quick Connect - 0.187 (4.7mm)
- Voltage - Isolation :
- 2500VAC
- Width :
- 34.93mm
- Max Power Dissipation :
- 12W
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 17 Weeks
- Center Tap :
- yes
- Size / Dimension :
- 71.42mm Lx34.93mm W
- Element Configuration :
- Dual
- Power Rating :
- 12W
- Height Seated (Max) :
- 41.28mm
- Voltage - Primary :
- 115V 230V
- Length :
- 71.42mm
- Series :
- Quick Pack
- Approval Agency :
- UL
- Power - Max :
- 12VA
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Mount :
- Chassis Mount, Flanges, Panel
- Datasheets
- FD5-120
FD5-120 datasheet pdf and Power Transformers product details from Triad Magnetics stock available at
