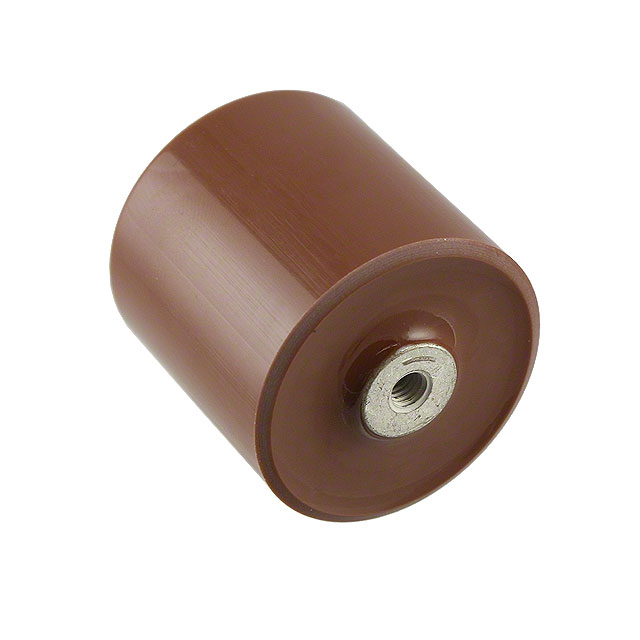

FD-22AU
Or copy the link below:
- Mfr.Part #
- FD-22AU
- Manufacturer
- TDK Corporation
- Package / Case
- Disk, Metal Fitting - Threaded
- Datasheet
- Download
- Description
- CAP CER 250PF 20KV Y5P DISK
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TDK Corporation
- Product Category :
- Ceramic Capacitors
- Published :
- 2001
- Temperature Characteristics Code :
- Y5P
- Packaging :
- Bulk
- Length :
- 33mm
- Mount :
- Holder
- Package / Case :
- Disk, Metal Fitting - Threaded
- Termination :
- Axial
- Capacitance :
- 250pF
- Terminal Shape :
- FERRULE
- Capacitor Type :
- CERAMIC CAPACITOR
- RoHS Status :
- ROHS3 Compliant
- Temperature Coefficient :
- Y5P B
- Voltage - Rated DC :
- 30kV
- Dielectric :
- Y5P
- Number of Terminations :
- 2
- Series :
- FD
- Lifecycle Status :
- Production (Last Updated: 1 month ago)
- ECCN Code :
- EAR99
- Tolerance :
- ±10%
- Rated (AC) Voltage (URac) :
- 20000V
- Factory Lead Time :
- 12 Weeks
- Pbfree Code :
- yes
- Size / Dimension :
- 1.181Diax1.299L 30.00mmx33.00mm
- Lead Free :
- Lead Free
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Requires Holder
- Feature :
- High Voltage
- Multilayer :
- No
- Operating Temperature :
- -30°C~85°C
- Additional Feature :
- RATED AC VOLTAGE (V): 20000
- Applications :
- GENERAL PURPOSE
- Diameter :
- 30mm
- Datasheets
- FD-22AU
FD 250pF Ceramic Capacitor ±10% Y5P B 1.181Diax1.299L 30.00mmx33.00mm -30°C~85°C 2 Terminations High Voltage Requires Holder Disk, Metal Fitting - Threaded
