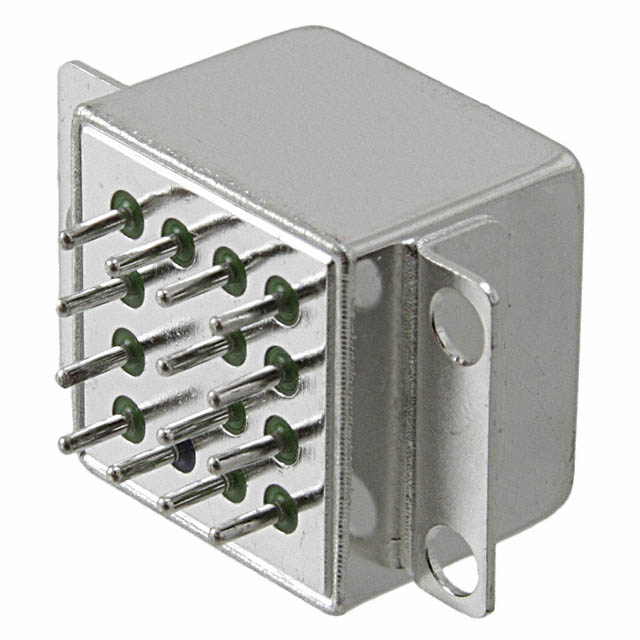

FCB-405-0620M
Or copy the link below:
- Mfr.Part #
- FCB-405-0620M
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- 405
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE 4PDT 5A 28V
- Stock
- 149
- In Stock ：
- 149
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Power Relays, Over 2 Amps
- Width :
- 20.574mm
- Termination Style :
- PC Pin
- Coil Current :
- 70mA
- Contact (AC) Max Rating R Load :
- 5A@115VAC
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Must Operate Voltage :
- 18VDC
- Switching Voltage :
- 115VAC 28VDC -Max
- Package / Case :
- 405
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Current Rating :
- 5A
- Dielectric Strength Between Open Contacts :
- 1000 Vrms
- Packaging :
- Bulk
- Contact Form :
- 4PDT (4 Form C)
- Contact Plating :
- Lead, Tin
- Throw Configuration :
- 4PDT
- Published :
- 2008
- Relay Action :
- Momentary
- Relay Type :
- GENERAL PURPOSE
- Max Current Rating :
- 5A
- Physical Dimension :
- 20.57mm x 20.57mm x 16.25mm
- Contact/Output Supply Type :
- AC/DC
- Lead Free :
- Contains Lead
- Termination :
- PC Pin
- Coil/Input Supply Type :
- DC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-609 Code :
- e0
- Must Release Voltage :
- 1.5VDC
- Input Switching Control Type :
- Random
- Factory Lead Time :
- 21 Weeks
- Length - Termination :
- 0.004 inch
- Body Length or Diameter :
- 20.57mm
- Series :
- Military, MIL-R-83536/6, FCB, CII
- RoHS Status :
- Non-RoHS Compliant
- Contact Material :
- Cadmium, Silver
- Operating Temperature :
- -70°C~125°C
- Coil Voltage (DC) :
- 28V
- Pbfree Code :
- No
- ECCN Code :
- EAR99
- Mount :
- Flanges, Vertical
- Max Voltage Rating (DC) :
- 6V
- Height :
- 16.256mm
- Contact (AC) Max Rating I Load :
- 5A@115VAC
- Contact (AC) Max Rating M Load :
- 3A@115VAC
- Coil Resistance :
- 400Ohm
- Release Time :
- 6 ms
- Number of Terminations :
- 14
- Body Breadth :
- 20.57 mm
- ELV :
- Non-Compliant
- Operate Time :
- 6ms
- Contact Current(DC)-Max :
- 5A
- Number of Pins :
- 14
- Insulation Resistance :
- 100000000Ohm
- Mounting Type :
- Chassis Mount
- Contact Voltage(AC)-Max :
- 115V
- Coil Type :
- Non Latching
- HTS Code :
- 8536.41.00.20
- Coil Voltage :
- 28VDC
- Contact Current(AC)-Max :
- 5A
- Seal Rating :
- Sealed - Hermetically
- Contact Resistance :
- 50mOhm
- Datasheets
- FCB-405-0620M
FCB-405-0620M datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity Aerospace, Defense and Marine stock available at
