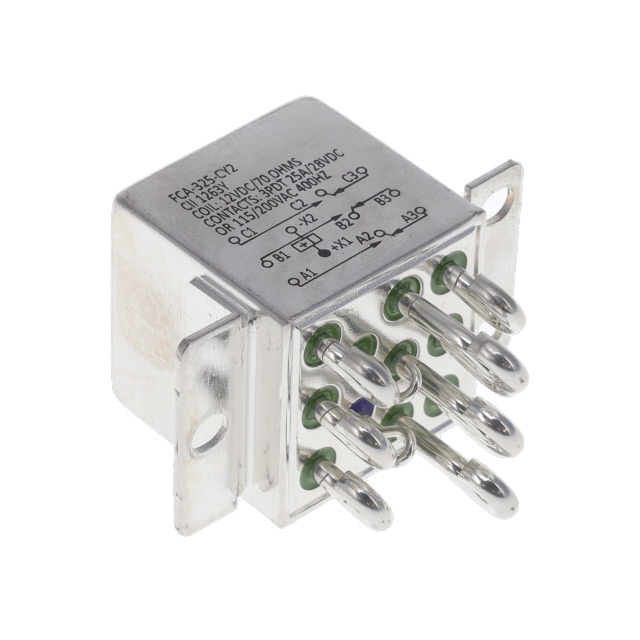

FCA-325-CY2
Or copy the link below:
- Mfr.Part #
- FCA-325-CY2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE 3PDT 25A 12V
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Power Relays, Over 2 Amps
- Coil Release Voltage(DC) :
- 0.75V
- Relay Action :
- Momentary
- Coil Voltage(DC)-Max :
- 12V
- Contact (DC) Max Rating R Load :
- 25A@28VDC
- Factory Lead Time :
- 34 Weeks
- HTS Code :
- 8536.41.00.50
- Coil Power :
- 2050mW
- Operating Temperature (Min) :
- -70°C
- Sealing :
- Hermetically Sealed
- Coil Operate Voltage(DC) :
- 9V
- Coil Current(DC)-Max :
- 0.171A
- Body Length or Diameter :
- 25.79mm
- Mounting Feature :
- Panel Mount
- Release Time :
- 16 ms
- Contact Voltage(DC)-Max :
- 28V
- Relay Function :
- 3PDT
- Contact Voltage(AC)-Max :
- 115V
- Body Breadth :
- 25.79 mm
- ECCN Code :
- EAR99
- Contact Current(AC)-Max :
- 25A
- Reference Standard :
- MIL-R-83536
- Coil/Input Supply Type :
- DC
- Physical Dimension :
- 25.79mm x 25.79mm x 25.4mm
- Surface Mount :
- No
- Body Height :
- 25.4mm
- Operate Time :
- 16 ms
- Electrical Life :
- 50000 Cycle(s)
- JESD-609 Code :
- e0
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Contact (AC) Max Rating R Load :
- 25A@115VAC
- Contact/Output Supply Type :
- AC/DC
- Termination Type :
- Solder Hook
- RoHS Status :
- Non-RoHS Compliant
- Published :
- 2003
- Relay Type :
- POWER/SIGNAL RELAY
- Coil Resistance :
- 70Ohm
- Operating Temperature (Max) :
- 125°C
- Contact Current(DC)-Max :
- 25A
- Datasheets
- FCA-325-CY2
FCA-325-CY2 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity Aerospace, Defense and Marine stock available at
