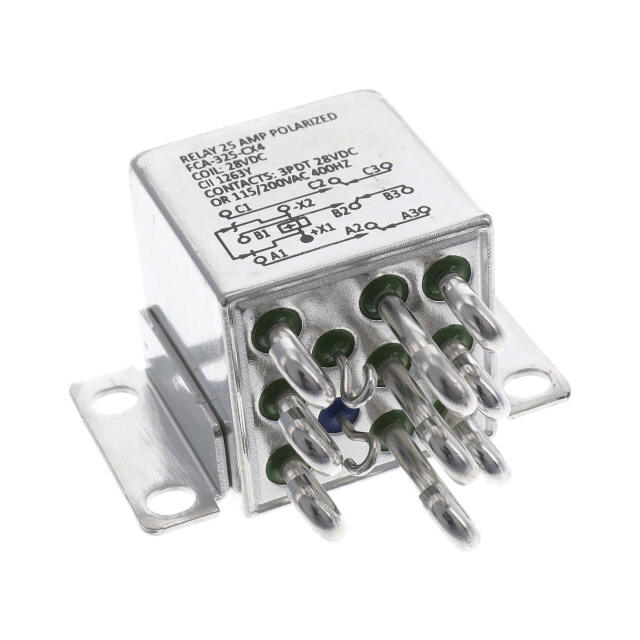

FCA-325-CX4
Or copy the link below:
- Mfr.Part #
- FCA-325-CX4
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE 3PDT 25A 28V
- Stock
- 42
- In Stock ：
- 42
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Power Relays, Over 2 Amps
- Relay Type :
- POWER/SIGNAL RELAY
- Mount :
- Flanges, Horizontal
- Coil Resistance :
- 290Ohm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Relay Action :
- Momentary
- Length :
- 43.64mm
- Sealing :
- Hermetically Sealed
- Number of Pins :
- 11
- RoHS Status :
- Non-RoHS Compliant
- Max Current Rating :
- 25A
- Depth :
- 26.04mm
- Contact Material :
- Cadmium, Silver
- Operate Time :
- 10 ms
- Release Time :
- 16 ms
- Current Rating :
- 25A
- Published :
- 2008
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact (DC) Max Rating R Load :
- 25A@28VDC
- Coil Type :
- Non-Latching
- HTS Code :
- 8536.41.00.50
- Contact/Output Supply Type :
- AC/DC
- ELV :
- Non-Compliant
- Coil Voltage (DC) :
- 28V
- Coil Current :
- 96.55mA
- Body Breadth :
- 25.4 mm
- Contact Current Rating :
- 25A
- Physical Dimension :
- 25.79mm x 25.4mm x 25.79mm
- Reference Standard :
- MIL-R-83536
- Max Operating Temperature :
- 125°C
- Coil Power :
- 2720mW
- Termination :
- Solder
- JESD-609 Code :
- e0
- Contact Plating :
- Lead, Tin
- Min Operating Temperature :
- -70°C
- Factory Lead Time :
- 34 Weeks
- Electrical Life :
- 50000 Cycle(s)
- Coil/Input Supply Type :
- DC
- Body Height :
- 25.79mm
- ECCN Code :
- EAR99
- Throw Configuration :
- 3PDT
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Datasheets
- FCA-325-CX4
