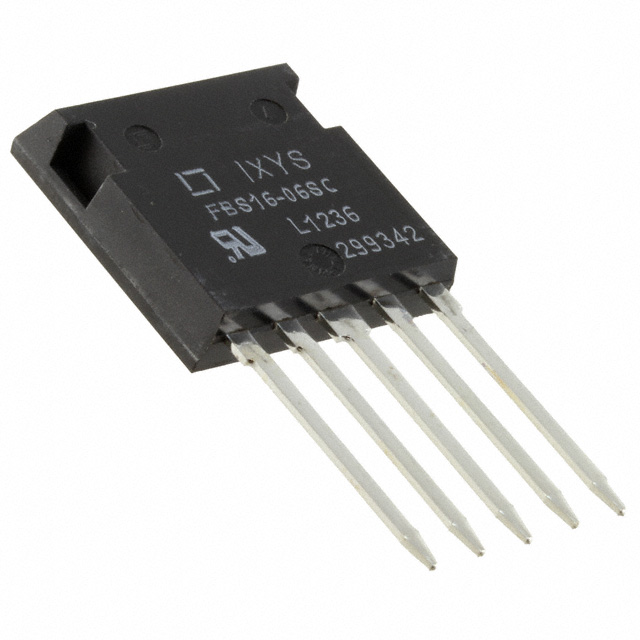

FBS16-06SC

Manufacturer :

Littelfuse

Product Category :

Diodes - Bridge Rectifiers

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Package :

Tube

Rep Pk Reverse Voltage-Max :

600 V

Max Repetitive Reverse Voltage (Vrrm) :

600V

Terminal Form :

THROUGH-HOLE

HTS Code :

8541.10.00.80

JESD-609 Code :

e1

Radiation Hardening :

No

Average Rectified Current :

11A

Pbfree Code :

yes

Peak Reverse Current :

200μA

Case Connection :

Isolated

Configuration :

BRIDGE, 4 ELEMENTS

Additional Feature :

High Reliability

Number of Pins :

5

Breakdown Voltage :

600V

Series :

--

Number of Elements :

1

Number of Terminals :

5

Mounting Type :

Through Hole

Diode Element Material :

SILICON

Element Configuration :

Single

Max Forward Surge Current (Ifsm) :

20A

Forward Current :

5A

Package Shape :

RECTANGULAR

Forward Voltage :

1.8V

Lead Free :

Lead Free

RoHS Status :

ROHS3 Compliant

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Voltage - Peak Reverse (Max) :

600V

Base Product Number :

FBS16

Published :

2002

Max Surge Current :

20A

Supplier Device Package :

ISOPLUS i4-PAC™

Peak Non-Repetitive Surge Current :

20A

Length :

19.91mm

JESD-30 Code :

R-PSIP-T5

Diode Type :

Single Phase

Package / Case :

ISOPLUSi5-Pak™

Number of Phases :

1

Product Status :

Obsolete

Mount :

Through Hole

Reach Compliance Code :

Compliant

Current - Reverse Leakage @ Vr :

200μA @ 600V

Packaging :

Tube

Operating Temperature :

-55°C~175°C TJ

Output Current-Max :

5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Manufacturer :

IXYS Corporation

Qualification Status :

Not Qualified

Number of Terminations :

5

Power Dissipation-Max :

27 W

Width :

5.03mm

Max Reverse Leakage Current :

200μA

Pin Count :

5

Non-rep Pk Forward Current-Max :

20 A

Current - Average Rectified (Io) :

11A

Factory Lead Time :

32 Weeks

Terminal Position :

Single

Voltage - Forward (Vf) (Max) @ If :

1.8V @ 6A

Power Dissipation :

27W

Height :

20.88mm

Surface Mount :

No
