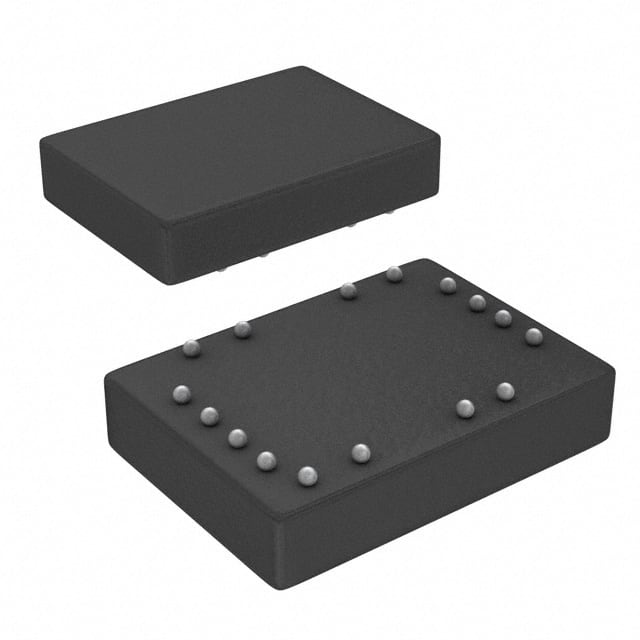

FAN48623UC315X

Manufacturer :

Fairchild Semiconductor

Product Category :

Voltage Regulators - DC DC Switching Regulators

Analog IC - Other Type :

ANALOG CIRCUIT

Output Type :

Programmable

Peak Reflow Temperature (Cel) :

260

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Frequency - Switching :

2.5MHz

RoHS Status :

ROHS3 Compliant

Voltage - Output (Max) :

3.3V

Number of Outputs :

1

JESD-609 Code :

e1

Package / Case :

16-UFBGA, WLCSP

Operating Temperature :

-40°C~85°C TA

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Pbfree Code :

yes

Published :

2015

Height Seated (Max) :

0.625mm

Terminal Form :

Ball

Voltage - Output (Min/Fixed) :

3.15V

Mounting Type :

Surface Mount

Voltage - Input (Max) :

5.5V

Series :

TinyBoost®

ECCN Code :

EAR99

Min Output Voltage :

3.33V

Output Configuration :

Positive

Mount :

Surface Mount

Weight :

58.66667mg

Factory Lead Time :

6 Weeks

Voltage - Input (Min) :

2.5V

Terminal Pitch :

0.4mm

Supply Voltage-Min (Vsup) :

2.5V

Supply Voltage :

3V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Terminations :

16

Synchronous Rectifier :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Output Current :

2.5A

Terminal Position :

BOTTOM

Supply Voltage-Max (Vsup) :

4.5V

Function :

Step-Up

Topology :

Boost

Packaging :

Tape and Reel (TR)
