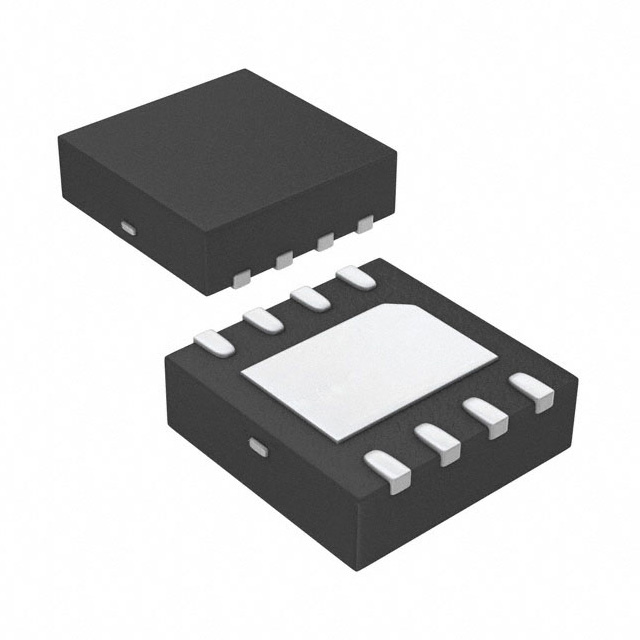

FAN3229CMPX
Or copy the link below:
- Mfr.Part #
- FAN3229CMPX
- Manufacturer
- Fairchild Semiconductor
- Package / Case
- 8-WDFN Exposed Pad
- Datasheet
- Download
- Description
- FULL BRIDGE BASED PERIPHERAL DRI
- Stock
- 2,595
- In Stock ：
- 2,595
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Fairchild Semiconductor
- Product Category :
- Gate Drivers
- Turn On Time :
- 0.017 µs
- Rise Time :
- 12ns
- RoHS Status :
- ROHS3 Compliant
- Max Output Current :
- 3A
- Built-in Protections :
- TRANSIENT
- Mount :
- Surface Mount
- Lead Free :
- Lead Free
- Terminal Position :
- Dual
- Turn On Delay Time :
- 30 ns
- Number of Pins :
- 8
- Weight :
- 129mg
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Supply Voltage :
- 12V
- Number of Drivers :
- 2
- Voltage - Supply :
- 4.5V~18V
- Number of Functions :
- 2
- Length :
- 3mm
- Current - Peak Output (Source, Sink) :
- 3A 3A
- REACH SVHC :
- No SVHC
- Qualification Status :
- Not Qualified
- Number of Terminations :
- 8
- Terminal Form :
- NO LEAD
- Packaging :
- Tape and Reel (TR)
- Height :
- 750μm
- Rise / Fall Time (Typ) :
- 12ns 9ns
- Package / Case :
- 8-WDFN Exposed Pad
- Channel Type :
- Independent
- Base Part Number :
- FAN3229
- Mounting Type :
- Surface Mount
- Operating Temperature :
- -40°C~125°C TJ
- Factory Lead Time :
- 6 Weeks
- Output Peak Current Limit-Nom :
- 3A
- Published :
- 2014
- Pbfree Code :
- yes
- Fall Time (Typ) :
- 9 ns
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Supply Voltage :
- 12V
- Output Current :
- 3A
- Nominal Supply Current :
- 1.05mA
- Width :
- 3mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Interface IC Type :
- FULL BRIDGE BASED PERIPHERAL DRIVER
- High Side Driver :
- No
- Max Supply Current :
- 1.05mA
- Gate Type :
- N-Channel MOSFET
- Driven Configuration :
- Low-Side
- Input Type :
- Inverting, Non-Inverting
- Propagation Delay :
- 30 ns
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Terminal Pitch :
- 0.65mm
- ECCN Code :
- EAR99
- Datasheets
- FAN3229CMPX
FAN3229CMPX Documents
Gate Drivers Fairchild Semiconductor FAN3229CMPX Overview
Introducing the FAN3229CMPX by Fairchild Semiconductor, a robust full bridge peripheral driver designed for high-performance applications requiring precise control and efficient power management. As a key component in the Gate Drivers category, this device stands out with its ability to drive complex loads with high speed and accuracy. The FAN3229CMPX is engineered to enhance system reliability and durability, making it an ideal choice for designers looking to improve their power systems with a reliable and efficient driver solution. The use of Gate Drivers Fairchild Semiconductor FAN3229CMPX ensures optimal functioning of your electronic systems, facilitating smoother and safer operations.
FAN3229CMPX Features
The FAN3229CMPX boasts a range of features designed to meet the rigorous demands of modern electronic systems. These include high current output, low propagation delay, and integrated under-voltage lockout protection. Its dual input allows for flexible design options, accommodating both high and low logic levels which ensures compatibility with a variety of control interfaces. Additionally, its robust design is tailored to withstand harsh operating conditions, making it a reliable choice for critical applications.
FAN3229CMPX Applications
- Motor Drives: Enhances the performance and reliability of motor drive systems by providing efficient and precise gate driving, essential for achieving optimal motor control.
- Power Converters: Critical in power conversion systems, ensuring smooth transition and accurate switching, thereby improving overall efficiency and performance.
- LED Lighting Systems: Plays a vital role in managing the power requirements for LED systems, offering stable and reliable driving capabilities which are crucial for prolonged LED lifespan and performance.
- Renewable Energy Systems: Utilized in solar inverters and wind turbine converters, where dependable and efficient gate driving is essential for energy conversion and electrical integrity.
