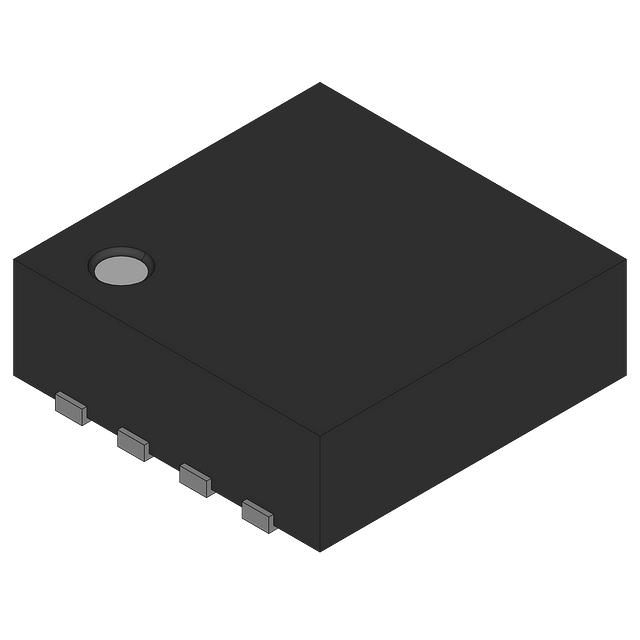

FAN256L8X

Manufacturer :

Fairchild Semiconductor

Product Category :

Comparators

Operating Temperature :

-40°C~85°C

ECCN Code :

EAR99

Operating Supply Voltage :

5.5V

Mount :

Surface Mount

Package / Case :

8-UFQFN

Type :

GENERAL PURPOSE

Common Mode Rejection Ratio :

80 dB

Packaging :

Tape and Reel (TR)

Base Part Number :

FAN256

Weight :

25mg

Output Type :

Push-Pull, Rail-to-Rail

Supply Voltage :

3V

Max Input Current :

10pA

Factory Lead Time :

6 Weeks

Terminal Pitch :

0.5mm

CMRR, PSRR (Typ) :

68db CMRR, 80db PSRR

Response Time :

6.2 ns

Voltage - Input Offset (Max) :

15mV @ 5.5V

Quiescent Current :

17µA

Voltage - Supply, Single/Dual (±) :

1.6V~5.5V ±0.8V~2.75V

Supply Voltage Limit-Max :

6V

Number of Elements :

2

Current - Input Bias (Max) :

10pA @ 5.5V

Terminal Position :

Dual

Pbfree Code :

yes

Number of Terminations :

8

Propagation Delay :

400 ns

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lifecycle Status :

LAST SHIPMENTS (Last Updated: 1 week ago)

Width :

1.6mm

Hysteresis :

4mV

Height :

500μm

Length :

1.6mm

Radiation Hardening :

No

Power Supply Rejection Ratio (PSRR) :

80dB

Mounting Type :

Surface Mount

Lead Free :

Lead Free

Max Supply Current :

17µA

Nominal Supply Current :

7mA

JESD-609 Code :

e4

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

RoHS Status :

ROHS3 Compliant

Input Offset Voltage (Vos) :

15mV

Number of Pins :

8

Published :

2016

Max Power Dissipation :

226mW

Number of Functions :

2

Input Bias Current :

10pA

Propagation Delay (Max) :

400ns (Typ)

Power Dissipation :

226mW
