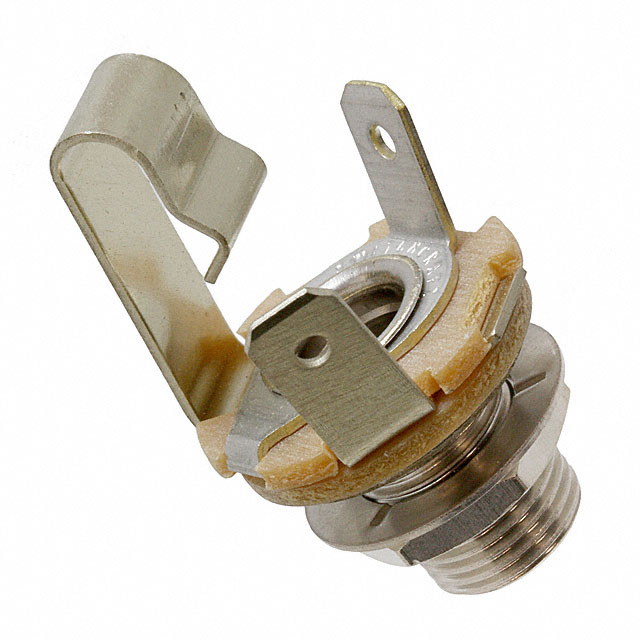

Images are for reference only.

Delivery：

Payment：

FAL11

Or copy the link below:

Mfr.Part #: FAL11

Manufacturer: Switchcraft / Conxall

Package / Case

Datasheet: Download

Description: CONN JACK MONO 6.35MM PNL MNT

Stock: 1,928

In Stock ：: 1,928

Request A Quote(RFQ)

* Fullname:

* Company:

* E-Mail:

Phone:

Comment:

* Quantity:

Manufacturer :: Switchcraft / Conxall
Product Category :: Audio Connectors

Number of Positions/Contacts :: 2 Conductors, 2 Contacts

Additional Feature :: Faston Terminal

Packaging :: Bulk

Body Material :: COPPER ALLOY

Number of Terminations :: 2

Number of Poles :: 2

Orientation :: Straight

Body Color :: Silver

Feature :: Mounting Hardware, Thread Lock

Actual Diameter :: 0.250 (6.35mm)

Series :: LITTEL-JAX®

Lead Free :: Lead Free

Thread Size :: 3/8-32

Option :: GENERAL PURPOSE

Gender :: FEMALE

Shielding :: Unshielded

Published :: 1998

Includes :: 3 pcs - 1 Connector, 1 Nut, 1 Washer

Contact Material :: COPPER ALLOY

Mount :: Panel

Contact Finish - Mating :: NOT SPECIFIED

RoHS Status :: ROHS3 Compliant

Panel Hole Size :: 0.375 9.52mm

Operating Temperature :: -20°C~65°C

Signal Lines :: Mono

DIN Conformance :: No

Number of Ports :: 1

Connector Type :: Phone Jack

Length :: 19.05mm

Housing Material :: Plastic

IEC Conformance :: No

MIL Conformance :: No

Max Voltage Rating (DC) :: 25V

Contact Material - Plating :: Nickel

Internal Switch(s) :: Does Not Contain Switch

Mounting Type :: Panel Mount

Moisture Sensitivity Level (MSL) :: Not Applicable

Depth :: 34.9mm

Industry Recognized Mating Diameter :: 6.35mm (0.250, 1/4) - Headphone

Voltage - Rated :: 25Vdc

Factory Lead Time :: 12 Weeks

Max Current Rating :: 1A

Termination :: Solder Eyelet(s)

Current Rating :: 1A

Datasheets: FAL11

FAL11 Documents

Introducing Audio Connectors Switchcraft / Conxall FAL11 from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations：2, Operating Temperature：-20°C~65°C, Mounting Type：Panel Mount, FAL11 pinout, FAL11 datasheet PDF, FAL11 amp .Beyond Audio Connectors Switchcraft / Conxall FAL11 ,we also offer RCJ-042, RCJ-2223, 50-00040, Our vast inventory has you covered. Contact us now for immediate solutions.
