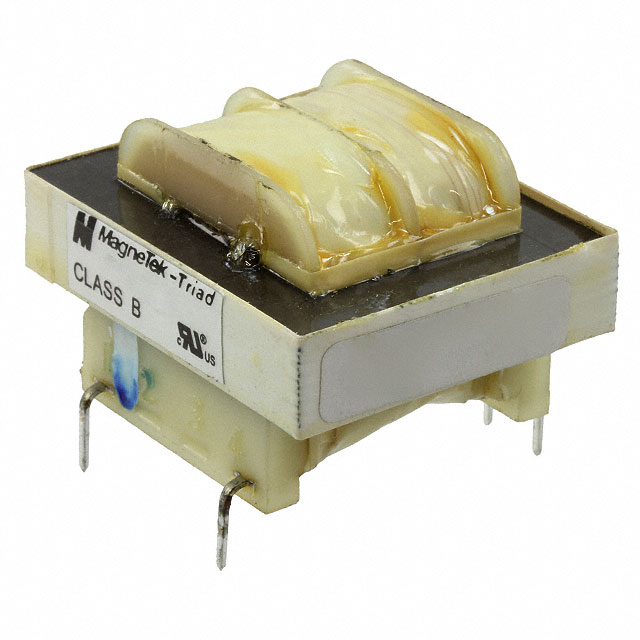

F48-050
Or copy the link below:
- Mfr.Part #
- F48-050
- Manufacturer
- Triad Magnetics
- Package / Case
- Datasheet
- Download
- Description
- PWR XFMR LAMINATED 2.5VA TH
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Triad Magnetics
- Product Category :
- Power Transformers
- Power Rating :
- 2.5W
- Secondary Winding(s) :
- Dual
- Width :
- 28.58mm
- Current - Output (Max) :
- Parallel 100mA Series 50mA
- Length :
- 34.93mm
- Power - Max :
- 2.5VA
- Max Output Current :
- 50mA
- Number of Pins :
- 6
- Center Tap :
- No
- Voltage - Secondary (Full Load) :
- Parallel 24V Series 48V
- Mount :
- Through Hole
- Type :
- Laminated Core
- Factory Lead Time :
- 17 Weeks
- Voltage - Isolation :
- 2500Vrms
- Height Seated (Max) :
- 30.15mm
- Weight :
- 0.25lb 113.4g
- Max Power Dissipation :
- 2.5W
- Mounting Type :
- Through Hole
- Series :
- Split Pack™, Class 2/3, F
- RoHS Status :
- ROHS3 Compliant
- Primary Winding(s) :
- Single
- Size / Dimension :
- 34.93mm Lx28.58mm W
- Termination :
- PC Pin
- Voltage - Primary :
- 115V
- Lead Free :
- Lead Free
- Element Configuration :
- Single
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Published :
- 2012
- Termination Style :
- PC Pin
- Datasheets
- F48-050
F48-050 Documents
F48-050 datasheet pdf and Power Transformers product details from Triad Magnetics stock available at
