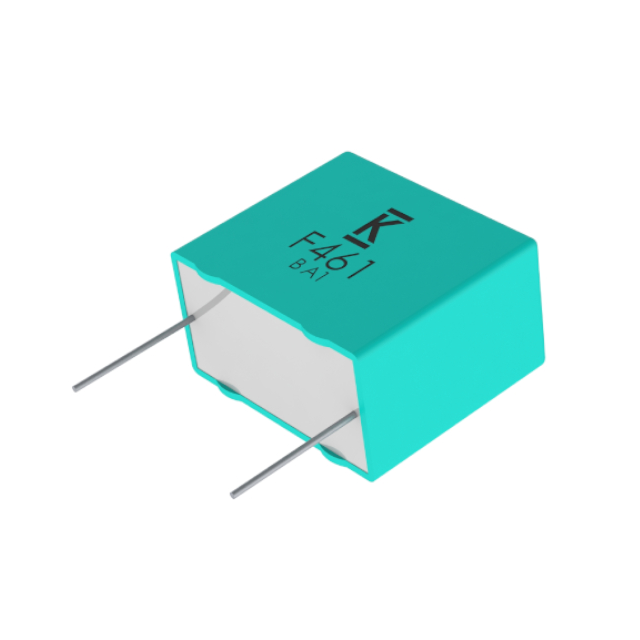

F461DY825J160Z

Manufacturer :

KEMET

Product Category :

Film Capacitors

Minimum Operating Temperature :

- 55 C

Number of Terminals :

2

Base Product Number :

F461DY

Number of Pins :

2 Pin

Length :

26 mm

Dielectric Material :

Polypropylene

Lead Diameter (nom) :

0.8(mm)

Product Type :

Film Capacitors

Size / Dimension :

1.024 L x 0.610 W (26.00mm x 15.50mm)

Failure Rate :

Not Required

Seated Plane Height :

24.5(mm)

Capacitance :

8.2 μF

Operating Temperature :

-55°C ~ 105°C

Capacitor Type :

FILM CAPACITOR

Features :

-

Rated (DC) Voltage (URdc) :

160 V

Reach Compliance Code :

Compliant

Additional Feature :

RATED AC VOLTAGE (V): 90

Surface Mount :

No

Tolerance :

±5%

Terminal Shape :

Wire

Termination :

PC Pins

Product :

AC and Pulse Film Capacitors

Product Height (mm) :

24.5(mm)

Height :

24.5 mm

Negative Tolerance :

5%

Package :

Box

Voltage :

160VDC/90VAC

Series :

F461

Product Status :

Active

Lead Spacing :

0.886 (22.50mm)

Operating Temp Range :

-55C to 105C

Temp Coeff (Dielectric) :

PP

Packing Method :

PIZZA PACK

Lead Style :

Straight

Package / Case :

Not Required

Package Shape :

RECTANGULAR PACKAGE

Ratings :

-

Product Depth (mm) :

15.5(mm)

Product Length (mm) :

26(mm)

Width :

15.5 mm

ECCN Code :

EAR99

Terminal Pitch :

22.5 mm

Construction :

Wound

Lead Diameter :

0.8 mm

Positive Tolerance :

5%

Subcategory :

Capacitors

Tolerance (+ or -) :

5%

Pbfree Code :

yes

Voltage Rating - DC :

160V

Product Diameter (mm) :

Not Required(mm)

Termination Style :

Radial

Diameter :

-

Mounting Feature :

THROUGH HOLE MOUNT

Voltage Rating - AC :

90V

Height - Seated (Max) :

0.965 (24.50mm)

Maximum Operating Temperature :

+ 105 C

Applications :

High Pulse, DV/DT

Type :

Pulse

Rated (AC) Voltage (URac) :

90 V

Dielectric :

Polypropylene (PP)

Packaging :

PIZZA

Mounting Type :

Through Hole

Mounting Style :

Through Hole
