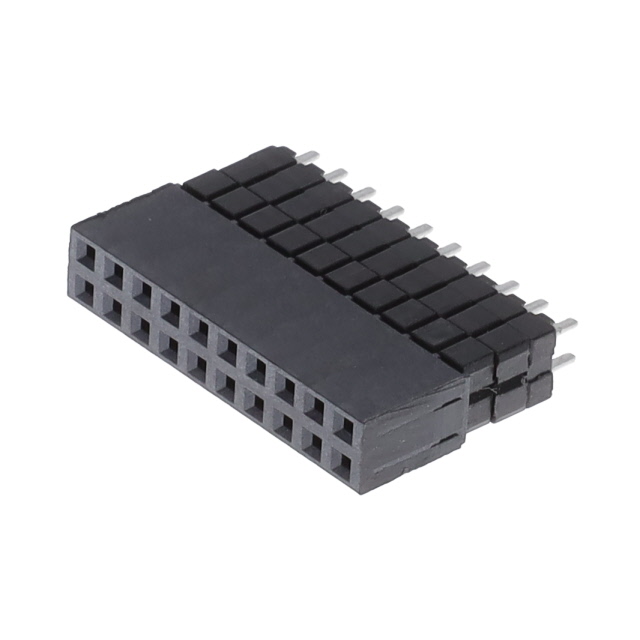

ESW-110-33-L-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Receptacles, Female Sockets

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

2

Current Rating (Amps) :

5.2A per Contact

Mounting Option 1 :

LOCKING

Moisture Sensitivity Level (MSL) :

Not Applicable

JESD-609 Code :

e3

Contact Length - Post :

0.090 2.29mm

MIL Conformance :

No

Mating Contact Pitch :

0.1 inch

Filter Feature :

No

Style :

Board to Board

Contact Shape :

Square

Length :

25.91mm

RoHS Status :

ROHS3 Compliant

Contact Finish Thickness - Mating :

10.0μin 0.25μm

Number of Conductors :

ONE

Depth :

4.95mm

Contact Resistance :

10MOhm

Mounting Type :

Through Hole

Termination :

Solder

Fastening Type :

Push-Pull

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

550VAC

Pbfree Code :

yes

Mixed Contacts :

No

Insulation Color :

Black

Operating Temperature :

-55°C~125°C

Reliability :

COMMERCIAL

Body Breadth :

0.195 inch

Insulation Height :

0.635 16.13mm

Number Of PCB Rows :

2

Factory Lead Time :

3 Weeks

Number of Positions :

20

Contact Finish - Mating :

Gold

Housing Material :

Polyester

Contact Finish - Post :

Tin

Published :

2014

Polarization Key :

POLARIZED HOUSING

Reference Standard :

UL, CSA

Packaging :

Tube

Plating Thickness :

10μin

Max Voltage Rating (AC) :

550V

IEC Conformance :

No

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Material :

Liquid Crystal Polymer (LCP)

Option :

GENERAL PURPOSE

Pitch - Mating :

0.100 2.54mm

Connector Type :

Elevated Socket

Series :

ESW

DIN Conformance :

No

Contact Type :

Forked

Radiation Hardening :

No

Contact Material :

Phosphor Bronze

Number of Positions Loaded :

All

Gender :

Receptacle

Max Current Rating :

6.9A

Orientation :

Straight
