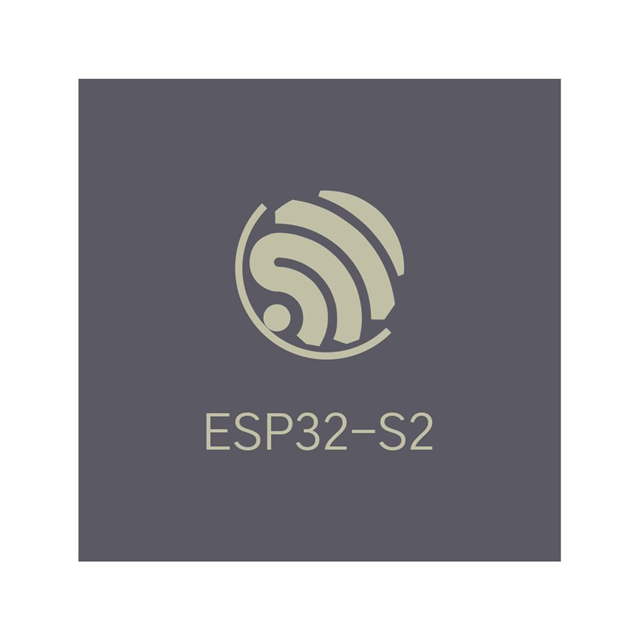

ESP32-S2R2
Or copy the link below:
- Mfr.Part #
- ESP32-S2R2
- Manufacturer
- Espressif Systems
- Package / Case
- 56-VFQFN Exposed Pad
- Datasheet
- Download
- Description
- SMD WI-FI IC, ESP32-S2R2, SINGLE
- Stock
- 1,566
- In Stock ：
- 1,566
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Espressif Systems
- Product Category :
- RF Transceiver Modules and Modems
- Mounting Type :
- Surface Mount
- Protocol :
- 802.11b/g/n
- Package / Case :
- 56-VFQFN Exposed Pad
- Manufacturer :
- Espressif
- Product Status :
- Active
- Current - Transmitting :
- 160mA ~ 310mA
- Memory Size :
- 2MB PSRAM, 128kB ROM, 320kB SRAM
- RF Family/Standard :
- WiFi
- Packaging :
- Reel
- Operating Temperature :
- -40°C ~ 85°C (TA)
- Serial Interfaces :
- ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
- Current - Receiving :
- 63mA ~ 68mA
- Power - Output :
- 19.5dBm
- Mounting Style :
- SMD/SMT
- Utilized IC / Part :
- ESP32-S2
- Data Rate :
- 150Mbps
- Brand :
- Espressif Systems
- Antenna Type :
- Antenna Not Included
- Voltage - Supply :
- 2.8V ~ 3.6V
- Product Type :
- RF System on a Chip - SoC
- Technology :
- Si
- Product Category :
- RF System on a Chip - SoC
- Frequency :
- 2.4GHz
- Sensitivity :
- -97dBm
- Subcategory :
- Wireless and RF Integrated Circuits
- Type :
- Wi-Fi
- Modulation :
- -
- Datasheets
- ESP32-S2R2
2.4GHz WiFi -40°C ~ 85°C (TA) 2.8V ~ 3.6V ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB Reel Antenna Not Included 150Mbps 19.5dBm 802.11b/g/n -97dBm 56-VFQFN Exposed Pad
ESP32-S2R2 Overview
RF Transceiver' mounting is done according to the Surface Mount method.There is an optimized performance in this RF Transceiver module because it utilizes the Reel package.Operating at -40°C ~ 85°C (TA) is the recommended temperature for Transceiver's operation.RF Transceivers with 2.8V ~ 3.6V voltage capabilities can be used.2.4GHz is the frequency of the RF Transceiver Module.
ESP32-S2R2 Features
Surface Mount
Reel package
2.8V ~ 3.6V volts
ESP32-S2R2 Applications
There are a lot of Espressif Systems
ESP32-S2R2 RF Transceiver Modules applications.
- Receive
- Switch
- Power management
- Internet of Things (IoT)
- Secure Payment
- Home and Security
- Health and Fitness
- Industrial and Data Logger
- LED Lighting
- Utility and Smart Energy
