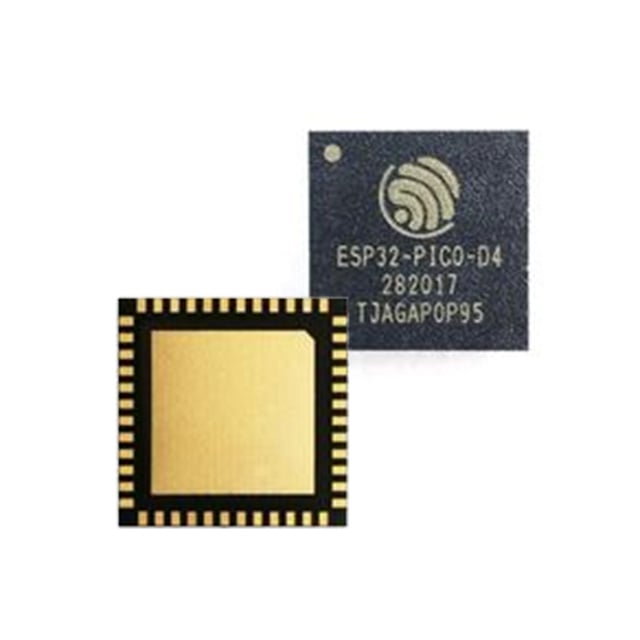

ESP32-PICO-D4
Or copy the link below:
- Mfr.Part #
- ESP32-PICO-D4
- Manufacturer
- Espressif Systems
- Package / Case
- 48-SMD Module
- Datasheet
- Download
- Description
- RX TXRX MOD WIFI SURFACE MOUNT
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Espressif Systems
- Product Category :
- RF Transceiver Modules and Modems
- Number of Terminations :
- 48
- Data Rate :
- 150Mbps
- Published :
- 2018
- Packaging :
- Tape and Reel (TR)
- Package / Case :
- 48-SMD Module
- Terminal Pitch :
- 0.5mm
- Length :
- 7mm
- Number of Functions :
- 1
- Mounting Type :
- Surface Mount
- Height Seated (Max) :
- 1.04mm
- Protocol :
- 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3
- Voltage - Supply :
- 2.7V~3.6V
- Terminal Form :
- NO LEAD
- JESD-30 Code :
- S-XQMA-N48
- Telecom IC Type :
- TELECOM CIRCUIT
- Frequency :
- 2.4GHz~2.5GHz
- Sensitivity :
- -98.4dBm
- Supply Voltage :
- 3.3V
- Width :
- 7mm
- Modulation :
- CCK, DSSS, OFDM
- Power - Output :
- 20.5dBm
- Factory Lead Time :
- 2 Weeks
- Series :
- ESP32
- Operating Temperature :
- -40°C~85°C
- RF Family/Standard :
- Bluetooth, WiFi
- Surface Mount :
- yes
- Serial Interfaces :
- I²C, I²S, SPI, UART, USB
- Memory Size :
- 4MB Flash
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- RoHS Status :
- RoHS Compliant
- Terminal Position :
- QUAD
- Datasheets
- ESP32-PICO-D4
2.4GHz~2.5GHz Bluetooth, WiFi -40°C~85°C 2.7V~3.6V GPIO, I2C, I2S, PWM, SDIO, SPI, UART Tape & Reel (TR) 150Mbps 20.5dBm 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 -98.4dBm 48-SMD Module
ESP32-PICO-D4 Overview
The RF Transceiver' mounting method is Surface Mount.As a result of the use of the Tape & Reel (TR) package, the performance of this RF Transceiver module is optimized.As you can see, this RF Transceiver module contains 48 terminations.This Transceiver should operate at a temperature of -40°C~85°C when operating.A type of RF Transceiver Module, belonging to the ESP32 family, is what we are describing here.RF Transceiver is capable of supplying a voltage of 2.7V~3.6V volts.2.4GHz~2.5GHz is the RF Transceiver Module's frequency.
ESP32-PICO-D4 Features
Surface Mount
Tape & Reel (TR) package
48 terminations
2.7V~3.6V volts
ESP32-PICO-D4 Applications
There are a lot of Espressif Systems
ESP32-PICO-D4 RF Transceiver Modules applications.
- Power Amplifier (PA)
- Low Noise Amplifier (LNA)
- Transmit
- Receive
- Switch
- Power management
- Internet of Things (IoT)
- Secure Payment
- Home and Security
- Health and Fitness
