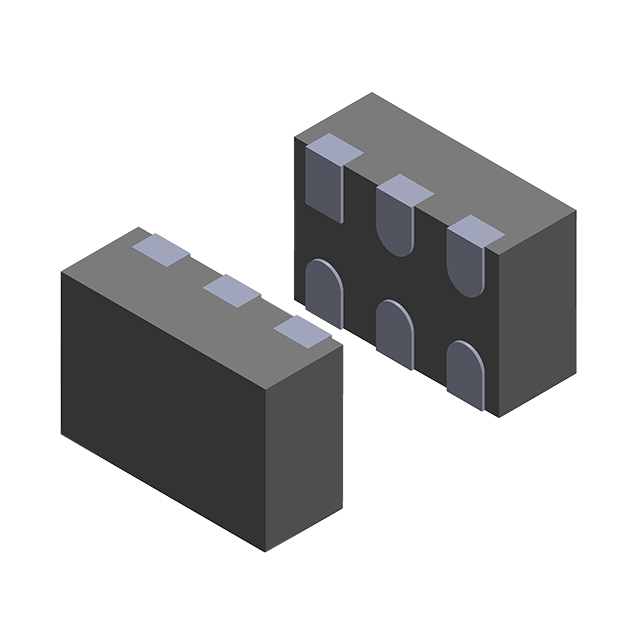

ESDALC6V1M6

Manufacturer :

STMicroelectronics

Product Category :

Depth :

1mm

Operating Supply Voltage :

3V

Power Dissipation :

30W

Direction :

Unidirectional

Power Rating :

30W

Terminal Position :

Dual

Unidirectional Channels :

4

Reverse Standoff Voltage :

3V

Base Part Number :

ESDALC6V1

JESD-609 Code :

e4

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Length :

1.45mm

Number of Terminations :

6

Number of Pins :

6

Package / Case :

6-UFDFN

Leakage Current :

70nA

Voltage - Rated DC :

6.1V

Peak Pulse Current :

3A

Max Breakdown Voltage :

7.2V

Width :

1mm

Capacitance :

15pF

REACH SVHC :

No SVHC

Peak Pulse Power :

30W

Packaging :

Tape and Reel (TR)

Number of Channels :

5

Lead Free :

Lead Free

Max Power Dissipation :

30W

Applications :

GENERAL PURPOSE

Capacitance @ Frequency :

12pF @ 1MHz

Pin Count :

6

Max Surge Current :

3A

Power Line Protection :

No

Number of Elements :

4

Mounting Type :

Surface Mount

Series :

ESDA, TRANSIL™

Breakdown Voltage :

6.1V

Mount :

Surface Mount

Operating Temperature :

-40°C~125°C TJ

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Termination :

SMD/SMT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Type :

Zener

Diode Element Material :

SILICON
