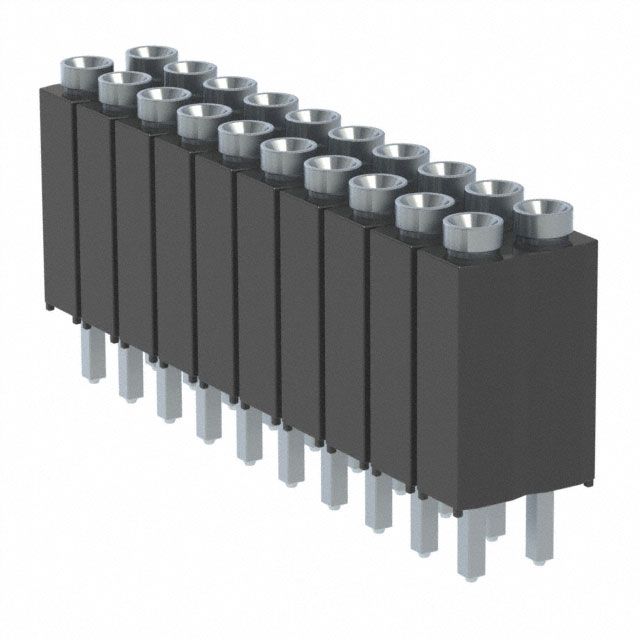

ESD-110-T-03
Or copy the link below:
- Mfr.Part #
- ESD-110-T-03
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 20POS 0.1 GOLD PCB
- Stock
- 9,254
- In Stock ：
- 9,254
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Shape :
- Circular
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Reach Compliance Code :
- not_compliant
- REACH SVHC :
- No SVHC
- JESD-609 Code :
- e3
- Option :
- GENERAL PURPOSE
- Housing Material :
- Polyester
- IEC Conformance :
- No
- Published :
- 2014
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Gender :
- Receptacle
- Contact Material :
- BERYLLIUM COPPER
- Style :
- Board to Board
- HTS Code :
- 8536.69.40.40
- Insulation Color :
- Black
- Operating Temperature :
- -55°C~125°C
- Fastening Type :
- Push-Pull
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 20
- Number of Positions Loaded :
- All
- Depth :
- 5.08mm
- Filter Feature :
- No
- Length :
- 25.4mm
- Insulation Height :
- 0.300 7.62mm
- Pitch - Mating :
- 0.100 2.54mm
- Mixed Contacts :
- No
- Contact Resistance :
- 10MOhm
- RoHS Status :
- ROHS3 Compliant
- Orientation :
- Straight
- Packaging :
- Bulk
- Pbfree Code :
- yes
- DIN Conformance :
- No
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- Termination :
- Solder
- Series :
- ESD
- Material Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Contact Type :
- Female Socket
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Connector Type :
- Elevated Socket
- Contact Finish - Post :
- Tin
- Number of Rows :
- 2
- Factory Lead Time :
- 3 Weeks
- Contact Length - Post :
- 0.153 3.89mm
- Datasheets
- ESD-110-T-03
2 Rows Elevated Socket Solder Beryllium Copper Through Hole Bulk Gold Liquid Crystal Polymer (LCP) 20 Positions Female Socket
ESD-110-T-03 Overview
The product comes in a package of Elevated Socket.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the ESD Series.It operates at an operating temperature of -55°C~125°C.
ESD-110-T-03 Features
ESD series
ESD-110-T-03 Applications
There are a lot of Samtec Inc.
ESD-110-T-03 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
