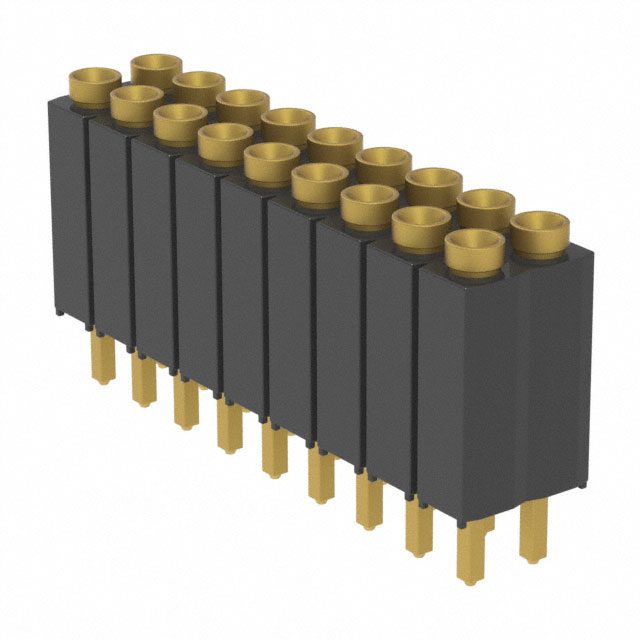

ESD-109-G-03
Or copy the link below:
- Mfr.Part #
- ESD-109-G-03
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 18POS 0.1 GOLD PCB
- Stock
- 20,923
- In Stock ：
- 20,923
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- Option :
- GENERAL PURPOSE
- Contact Material :
- BERYLLIUM COPPER
- IEC Conformance :
- No
- Contact Length - Post :
- 0.153 3.89mm
- Published :
- 2014
- Factory Lead Time :
- 3 Weeks
- HTS Code :
- 8536.69.40.40
- Filter Feature :
- No
- Fastening Type :
- Push-Pull
- Gender :
- Receptacle
- Radiation Hardening :
- No
- Row Spacing - Mating :
- 0.100 (2.54mm)
- ECCN Code :
- EAR99
- Contact Finish Thickness - Post :
- 10.0μin 0.25μm
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- DIN Conformance :
- No
- MIL Conformance :
- No
- Mount :
- Through Hole
- Packaging :
- Bulk
- Style :
- Board to Board
- Contact Finish - Mating :
- Gold
- Insulation Height :
- 0.300 7.62mm
- Pbfree Code :
- yes
- JESD-609 Code :
- e4
- Connector Type :
- Elevated Socket
- Series :
- ESD
- Termination :
- Solder
- Contact Type :
- Female Socket
- Mounting Type :
- Through Hole
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- REACH SVHC :
- No SVHC
- Insulation Color :
- Black
- Pitch - Mating :
- 0.100 2.54mm
- Mixed Contacts :
- No
- Number of Rows :
- 2
- Number of Positions Loaded :
- All
- Operating Temperature :
- -55°C~125°C
- Contact Shape :
- Circular
- Number of Positions :
- 18
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Datasheets
- ESD-109-G-03
2 Rows Elevated Socket Solder Beryllium Copper Through Hole Bulk Gold Liquid Crystal Polymer (LCP) 18 Positions Female Socket
ESD-109-G-03 Overview
Packaging is Elevated Socket.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the ESD Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -55°C~125°C Operating Temperature.
ESD-109-G-03 Features
ESD series
ESD-109-G-03 Applications
There are a lot of Samtec Inc.
ESD-109-G-03 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
