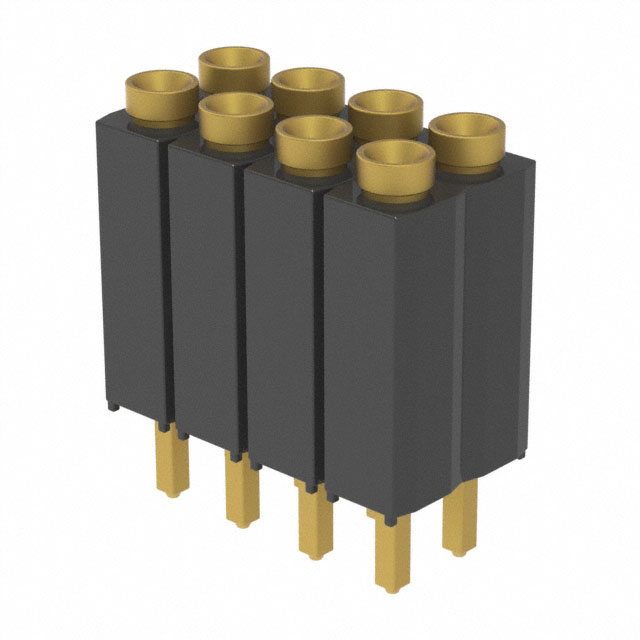

ESD-104-G-03
Or copy the link below:
- Mfr.Part #
- ESD-104-G-03
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 8POS 0.1 GOLD PCB
- Stock
- 38,384
- In Stock ：
- 38,384
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- MIL Conformance :
- No
- ECCN Code :
- EAR99
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.300 7.62mm
- Contact Shape :
- Circular
- Factory Lead Time :
- 3 Weeks
- Option :
- GENERAL PURPOSE
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Pbfree Code :
- yes
- Style :
- Board to Board
- Contact Type :
- Female Socket
- Contact Finish Thickness - Post :
- 10.0μin 0.25μm
- JESD-609 Code :
- e4
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Length - Post :
- 0.153 3.89mm
- REACH SVHC :
- No SVHC
- Contact Finish - Mating :
- Gold
- Operating Temperature :
- -55°C~125°C
- Radiation Hardening :
- No
- Packaging :
- Bulk
- Fastening Type :
- Push-Pull
- Filter Feature :
- No
- Mount :
- Through Hole
- Termination :
- Solder
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Number of Positions :
- 8
- Insulation Color :
- Black
- Mounting Type :
- Through Hole
- IEC Conformance :
- No
- Gender :
- Receptacle
- Number of Rows :
- 2
- Connector Type :
- Elevated Socket
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Published :
- 2014
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- BERYLLIUM COPPER
- Series :
- ESD
- Mixed Contacts :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Datasheets
- ESD-104-G-03
2 Rows Elevated Socket Solder Beryllium Copper Through Hole Bulk Gold Liquid Crystal Polymer (LCP) 8 Positions Female Socket
ESD-104-G-03 Overview
Packaging is in the form of Elevated Socket.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the ESD Series.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.
ESD-104-G-03 Features
ESD series
ESD-104-G-03 Applications
There are a lot of Samtec Inc.
ESD-104-G-03 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
