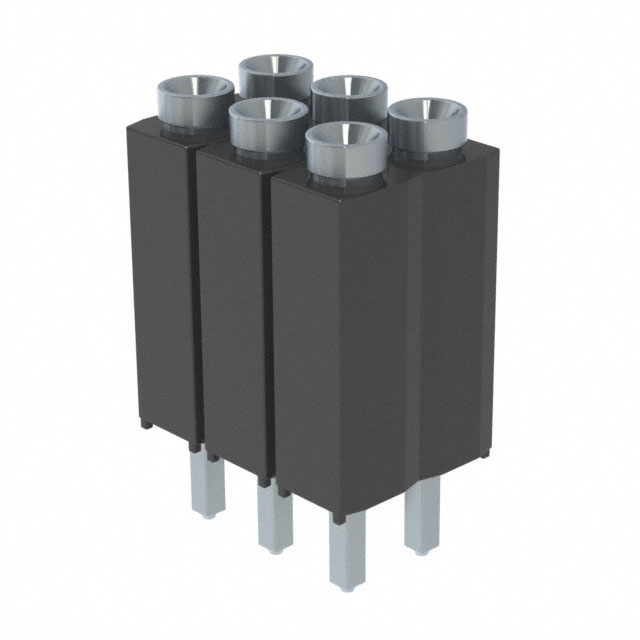

ESD-103-T-23
Or copy the link below:
- Mfr.Part #
- ESD-103-T-23
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 6POS 0.1 GOLD PCB
- Stock
- 2,906
- In Stock ：
- 2,906
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- RoHS Status :
- ROHS3 Compliant
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 3 Weeks
- Contact Length - Post :
- 0.115 2.92mm
- Mounting Type :
- Through Hole
- Pbfree Code :
- yes
- Contact Shape :
- Circular
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- JESD-609 Code :
- e4
- Style :
- Board to Board
- Insulation Color :
- Black
- Number of Positions :
- 6
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~125°C
- Termination :
- Solder
- MIL Conformance :
- No
- Filter Feature :
- No
- Contact Type :
- Female Socket
- Mixed Contacts :
- No
- Contact Material :
- BERYLLIUM COPPER
- Additional Feature :
- LOW INSERTION FORCE
- Gender :
- FEMALE
- IEC Conformance :
- No
- DIN Conformance :
- No
- Packaging :
- Bulk
- Mount :
- Through Hole
- Fastening Type :
- Push-Pull
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Insulation Height :
- 0.300 7.62mm
- Radiation Hardening :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Series :
- ESD
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Finish - Post :
- Tin
- Connector Type :
- Elevated Socket
- Option :
- GENERAL PURPOSE
- Datasheets
- ESD-103-T-23
2 Rows Elevated Socket Solder Beryllium Copper Through Hole Bulk Gold Liquid Crystal Polymer (LCP) 6 Positions Female Socket
ESD-103-T-23 Overview
Currently, it is packaged in Elevated Socket.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the ESD Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as LOW INSERTION FORCE, to name a few.Through Hole represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
ESD-103-T-23 Features
ESD series
ESD-103-T-23 Applications
There are a lot of Samtec Inc.
ESD-103-T-23 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
