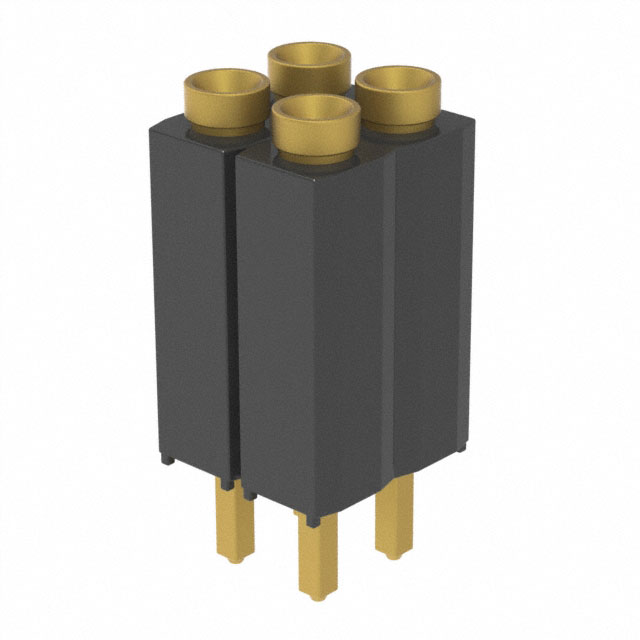

ESD-102-G-03
Or copy the link below:
- Mfr.Part #
- ESD-102-G-03
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 4POS 0.1 GOLD PCB
- Stock
- 31,808
- In Stock ：
- 31,808
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- DIN Conformance :
- No
- Fastening Type :
- Push-Pull
- Gender :
- Receptacle
- Mount :
- Through Hole
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Number of Positions :
- 4
- Contact Shape :
- Circular
- Factory Lead Time :
- 3 Weeks
- Number of Positions Loaded :
- All
- Pbfree Code :
- yes
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Type :
- Female Socket
- Series :
- ESD
- IEC Conformance :
- No
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- Insulation Color :
- Black
- Option :
- GENERAL PURPOSE
- REACH SVHC :
- No SVHC
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Published :
- 2014
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Number of Rows :
- 2
- RoHS Status :
- ROHS3 Compliant
- JESD-609 Code :
- e4
- MIL Conformance :
- No
- Contact Length - Post :
- 0.153 3.89mm
- Operating Temperature :
- -55°C~125°C
- Contact Finish - Mating :
- Gold
- Filter Feature :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Connector Type :
- Elevated Socket
- Insulation Height :
- 0.300 7.62mm
- Material Flammability Rating :
- UL94 V-0
- Mixed Contacts :
- No
- Contact Finish Thickness - Post :
- 10.0μin 0.25μm
- Radiation Hardening :
- No
- Contact Material :
- BERYLLIUM COPPER
- Termination :
- Solder
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Style :
- Board to Board
- Datasheets
- ESD-102-G-03
2 Rows Elevated Socket Solder Beryllium Copper Through Hole Bulk Gold Liquid Crystal Polymer (LCP) 4 Positions Female Socket
ESD-102-G-03 Overview
The product is packaged in Elevated Socket.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the ESD Series.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
ESD-102-G-03 Features
ESD series
ESD-102-G-03 Applications
There are a lot of Samtec Inc.
ESD-102-G-03 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
