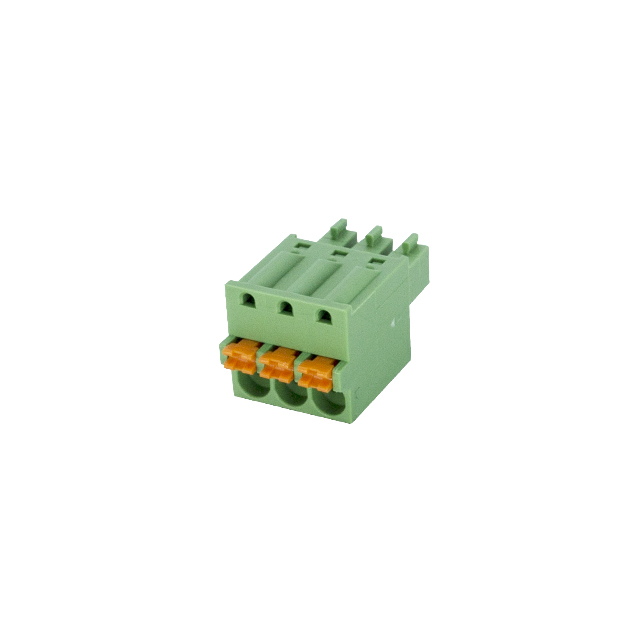

ESC381V-03P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Wire Gauge :

16 AWG

Pitch :

0.150 (3.81mm)

Voltage - UL :

300 V

Pbfree Code :

yes

Wire Gauge or Range - mm² :

0.2-1.5mm²

Operating Temperature :

-40°C ~ 120°C

Number of Levels :

1

Reach Compliance Code :

Compliant

Voltage - IEC :

500 V

ECCN Code :

EAR99

Wire Cross Section :

1.5 mm2

Series :

ESC381V

Number of Positions :

3

Package :

Bulk

Wire Gauge or Range - AWG :

16-28 AWG

Color :

Green

Number of Rows :

1

Mounting Type :

Free Hanging (In-Line)

Rated Current :

8 A

Number of Ways :

3

Positions Per Level :

3

HTS Code :

8536.69.40.40

Rated Voltage :

300 V

Features :

-

Current - IEC :

10A

Number of Decks :

1

Safety Approval :

CUL; UL

Fastening Method :

SPRING LOADED

Product Status :

Active

Type :

Plug, Female Sockets

Termination Style :

Screwless - Leg Spring, Push-In Spring

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Plug Wire Entry :

180°

Contact Mating Finish :

Tin

Current - UL :

8 A

Header Orientation :

-
